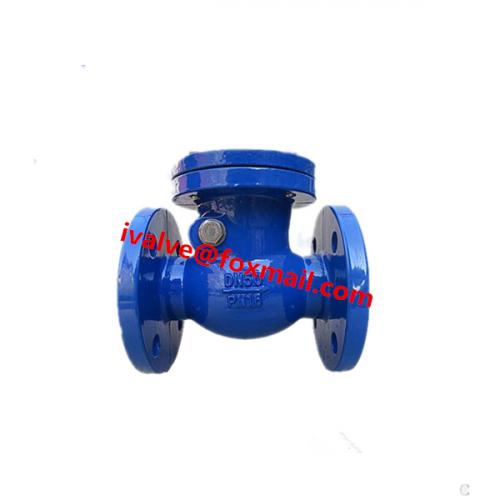

GG25 PN16 Swing Check Valve
- Product Name: GG25 PN16 Swing Check Valve
- Model Number: CV004
- Brand Name: CheckValves
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10 PCS
- Supply Capacity: 200 Tons/month
- Payment: T/T,L/C
- MemberShip: Free Member
- Inquiry Now
GG25 PN16 Swing Check Valve CV004 Description
Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint
Specifications
Valve Standard: MSS SP-71, BSEN 12334
Nominal diameter: 2"-24"/DN50-DN600
Working pressure: 10/16/25Bar;125/150PSI
Face-to-face: ANSI B16.10, ISO 5752 Series 10, EN 558 Series 10, DIN3352 F6
Flange accommodation: ANSI B16.1 Class125/150, EN1092-2 PN16
Tightness check: API 598, ISO 5208, EN12226-2
Material
Body: Cast iron or ductile iron
Bonnet: Cast iron or ductile iron
Seat ring: Brass or Cast bronze or stainless steel(SS304)
Arm: Cast iron or ductile iron
Disc: Cast iron or ductile iron
Pin: Stainless steel
Drain plug: Stainless steel
| Body/Bonnet | Cast Iron |
|---|---|
| Disc | Cast Iron+Bronze/Brass/2Cr13 |
| Seat Ring | Bronze/Brass/2Cr13 |
| Design and Manufacturer | DIN3352/MSS SP-71 |
| Nominal Pressure | PN16/125PSI/250PSI |
