• Product Name: GG25 DIN Flanged Y Strainer
• Model Number: STR002
• Brand Name: Y-Strainer
• Place of Origin: Tianjin, China
• Minimum Order Quantity: 10 PCS
• Supply Capacity: 200 Tons/month
• Payment: T/T,L/C
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

GG25 DIN Flanged Y Strainer STR002 Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint

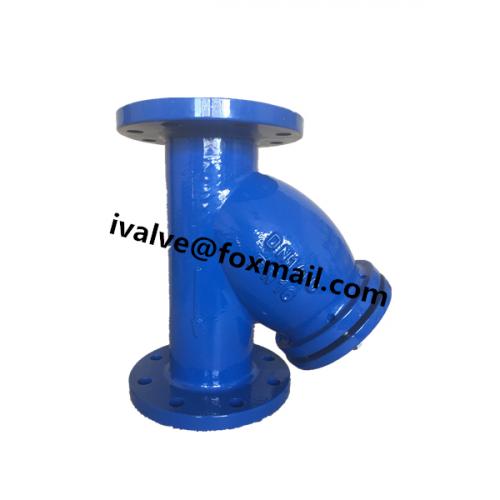

Cast Iron Y Type Strainer
Specifications
1. Suitable media: Water, oil.
2. Nominal diameter: DN15-DN600(1/2"-24").
3. Working temperature: -20 to 200 centigrade.
4. Tightness check: API 598/ISO 5208/EN12226-1.
5. Flange: DIN2501/EN1092-2 PN10/16/25 or ANSI B16.10; Thread: NPT/BSP/BSPT
6. Standard: DIN3202 F1, ANSI CLASS 125, BS4504 PN16.
7. Face-to-face conform to DIN3352/DIN3202 F1(ISO5752)/EN558-1. BS2080.
8. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar or class 125lbs-150lbs.
9. Body coating: Fusion bonded epoxy coating or bitumen coating at customers' request.

Main parts materials
1) Screen: Stainless Steel SS304/SS201.
2) Bolt and Plug: Carbon Steel or Stainless Steel.
3) Gasket: NBR/EPDM/Synthetic Fiber ( Asbestos Free).
4) Body and Cover: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450/WCB/cast steel.

Packaging & Delivery
Packaging Detail: Plywood case.
Delivery Detail: General within 30 days or according to the order quantity.
