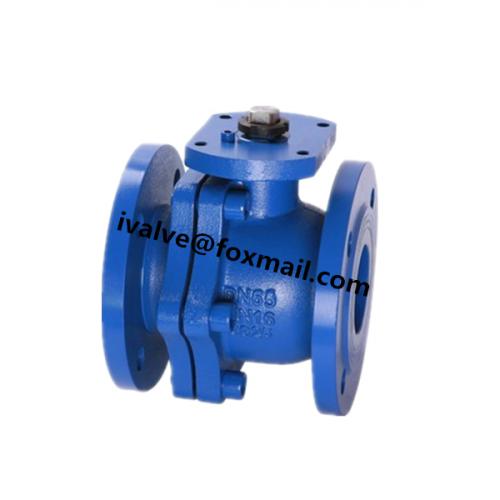

• Product Name: Cast Iron Flanged Ball Valve
• Model Number: BV001
• Brand Name: BallValves
• Place of Origin: Tianjin, China
• Minimum Order Quantity: 10 PCS
• Supply Capacity: 200 Tons/month
• Payment: T/T,L/C
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

Cast Iron Flanged Ball Valve BV001 Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint

Main Parts Material
Body:Cast iron
Nut/bolting:Carbon Steel
Ball:2Cr13
Seat:PTFE
Stem:SS304
Lever:Ductile Iron(GGG40)
Operation:Handle Lever/Gear Box/Actuators
Size:DN50~DN250
Pressure:PN10/16

Standard:
Working temperature: -20 °C ~ +120 °C
Face To Face :DIN3202 DN15-DN100 DIN3202 (F4); DN125-DN250 DIN3202 (F5)
End Flange Dimensions:EN 1092-2 etc.
Testing:DIN3230,API598
Medium:Water,oil,gas etc.
