• Product Name: FM UL Approved Fire Fighting Gate Valve
• Model Number: GTV005
• Brand Name: GateValves
• Place of Origin: Tianjin, China
• Minimum Order Quantity: 10 PCS
• Supply Capacity: 200 Tons/month/month
• Payment: T/T,L/C
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

FM UL Approved Fire Fighting Gate Valve GTV005 Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint

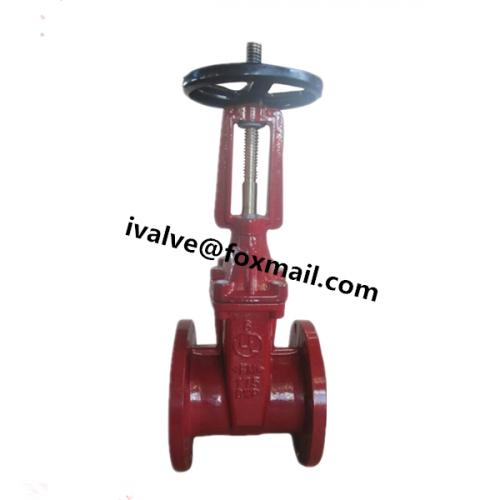

FM UL Approved Fire Fighting Gate Valve

Specifications

1.Suitable media: Water.

2.Face-to-face conform to ANSI/ASME B16.10.

3.Nominal diameter: DN40~DN600 (1 1/2"~24").

4.Tightness check: AWWA C509/C515 /API 598/ISO 5208/EN12226-1.

5.Operator: Cap top, hand wheel, Gear box, electric actuator, etc.

6.Flange: ANSI/ASME B16.1/ ANSI B16.5 Class 125, ANSI/AWWA C110/21.10.

7.Working temperature:-20 to 120 centigrade . (EPDM:-20 to 120, NBR: -10 to 80).

8.Working pressure: Class125, class150, 250 psi (2"~12"), 200 psi (14"~24"), 150 psi.

Main parts materials

A)Seat: EPDM/NBR/Brass.

B)Gland follower: brass/ductile iron.

C)Bolt and nut: stainless steel, steel with zinc.

D)Stem: stainless steel, brass, bronze, steel with zinc.

E)Hand-wheel: ductile iron/ malleable Iron/carbon steel.

F)Body/Bonnet/Disc: cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.

Delivery & Packaging

Delivery Detail: General within 30 days or according to the order quantity.

Packaging Detail: Plywood case. (each pc into one bubble plastic bag, several pcs into one Plywood case).
