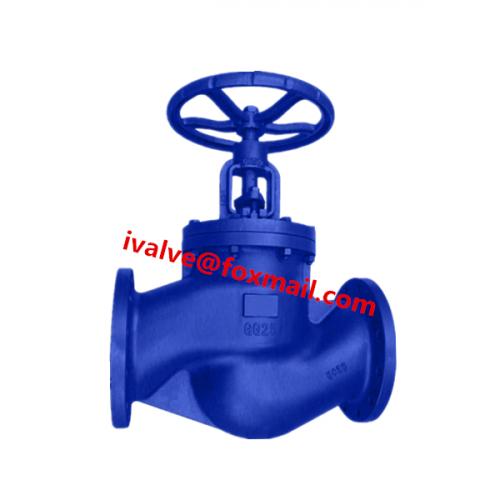

DIN Globe Valve / Angle Type Globe Valve
- Product Name: DIN Globe Valve / Angle Type Globe Valve
- Model Number: GLV001
- Brand Name: GlobeValves
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10 PCS
- Supply Capacity: 200 Tons/month
- Payment: T/T,L/C
- MemberShip: Free Member
- Inquiry Now
DIN Globe Valve / Angle Type Globe Valve GLV001 Description
Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint
DIN Globe Valve / Angle Type Globe Valve
Size: DN15-DN300
Medium: Water, steam, oil
Standard: GOST/DIN/ANSI/GB
Working temp.: ≤ 200degree
Flange dimensions: DIN2501 PN10/16
Face to face: DIN3202/DIN3352 F1
Material
Valve Body:
Cast Iron(CI): ASTM A126CL. B, DIN1691 GG25, EN 1561 EN-GJL-200
Ductile Iron(DI): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15
Stem: Zinc Plated Carbon Steel, Stainless Steel: ASTM A276 Type 316/304/410/420, ASTM A582 Type 416.
| Body&Bonnet | Cast Iron |
|---|---|
| Disc | A105/Cast Iron+2Cr13 |
| Stem | Stainless Steel |
| Seat Ring | Stainless Steel |
| Face to Face | DIN3202/DIN3352 F1 |
