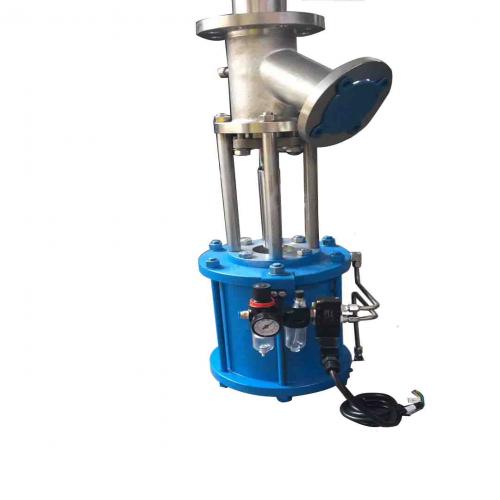

Vessel Flush Valve With Pneumatic Actuator

Vessel Flush Valve With Pneumatic Actuator
  • Product Name: Vessel Flush Valve With Pneumatic Actuator
  • Model Number: QsFb645Y-10
  • Brand Name: QUANSHUN
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 2
  • Supply Capacity: 200Sets/Week /month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Vessel Flush Valve With Pneumatic Actuator QsFb645Y-10 Description

Vessel Flush Valve With Pneumatic Actuator (referred to Pneumatic ON-OFF Flush Bottom Valve  etc) are designed to provide drainage and dead space free shut off for vessels, autoclaves and storage tanks. Both inside vessel opening and inside valve opening can be supplied by QUANSHUN.


The dead space free shut off is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of medium within the vessel nozzle itself.


The series of Vessel Flush Valve With Pneumatic Actuator has two constructions : Y-type & angle type. According to the actual operating condition of vessel, the dumping entry has two types: pipe-connecting and flat bottom. If needed ,special surface treatment on the whole valve can be made ,it  makes the surface hardness more than HRC 60, this can ensure the sealing reliability and avoid scarring. Moreover, a rotation-resistant device is set to ensure that the valve stem only has straight line motions, and no revolving motions.


BENEFITS


1.This range of manual control tank bottom angle valve is manufactured in y type integrated structure;


2. Short stroke for open/close operation;


3.lowering disc type (the valve is opened into valve) can be designed if needed.


4.The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.


5. Crust breaking for disc rising type;


6.Disc is designed as external disc.


7.Pneumatic operation can save labour cost .


TECHNICAL SPECIFICATION :


Size: DN50-DN350

Pressure: PN10-PN16


Body Material: WCB

Connection Type:Flange


APPLICATION:


Alumina Refinery


Chemical Industry

DN 150
PN 10
Body Material WCB
Operating method Pneumatic
