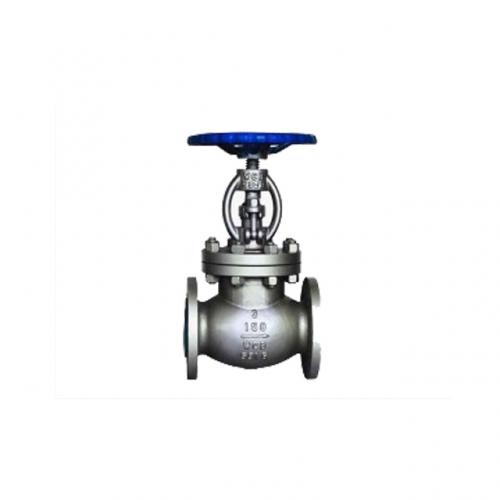

Straight through globe valve 00017 Description

Straight through globe valve is a type of adopts a straight-through valve body and controls the medium flow by the disc moving up or down. This straight through stop valve is widely used for control of water, steam, oil and other corrosive medium.Features1.Valve bonnet of this globe valve is equipped with an upper seal seat, perfectly meeting the requirements of ASME and BS standards;2.A stud, serving as the middle connection bolt of the valve makes repair and maintenance much easier;3.The valve seat is connected by screw thread in which way the replacement and maintenance is much easier;4.Sealed by premium packing, this industrial valve is highly leakage-proof.Technical SpecificationsSize: 2”~16”DN50~DN400Pressure: Class 150 ~ Class 2500  PN1.0~PN32Body material:WCB(A105),WC6,WC9,LCB,CF8(304),CF8M(316),CF3(304L), CF3M (316L) etcSealing material: Rubber, PTFE, hard alloy etc.Connection method: Flange, weldingDriving method: Manual, electric, pneumatic,bevel gearDesign standard: ASME B16.34ApplicationsChemical industryWater WorksPower station
