• Product Name: Steam Jackating Type Flush Bottom Valve
• Model Number: QsBFb545Y-150
• Brand Name: QUANSHUN
• Place of Origin: Henan, China
• Minimum Order Quantity: 2 Sets
• Supply Capacity: 500 Sets/Month/month
• Payment: T/T ,L/C
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

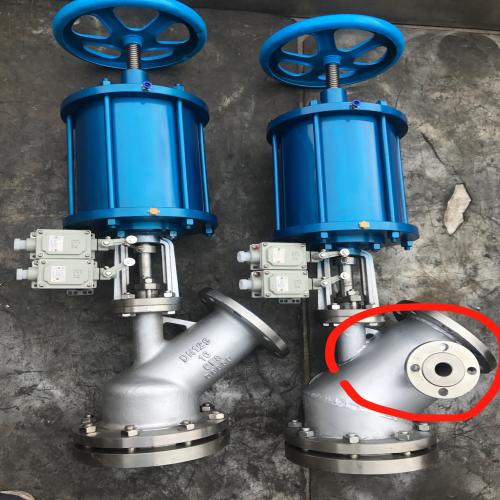

Steam Jackating Type Flush Bottom Valve QsBFb545Y-150 Description

Steam Jackating Type Flush Bottom Valves are designed to provide steam drainage and dead space free shut off for reactors, vessels, autoclaves and storage tanks. Both inside vesel opening and inside valve opening can be supplied. The steam jackating type flush bottom valve is suitable for any medium needs to keep temperature with steam ,it can prtect the medium from solidification  &  crystallization at normal temperature ,and reduce the pipe line enegy lost .

The series of tank bottom valve has two constructions: Y-type & angle type. According to the actual operating condition, the dumping entry has two types: pipe-connecting and flat bottom. If needed ,special surface treatment on the whole valve makes the surface hardness more than HRC 60, this can ensure the sealing reliability and avoid scarring. Moreover, a rotation-resistant device is set to ensure that the valve stem only has straight line motions, and no revolving motions. The driving manners of the valve include hand driving, electric ,driving, pneumatic and gear driving. Both rising disc type (the valve is opened into tank) and lowering disc type (the valve is opened into valve) can be designed.

BENEFITS

1.This range of manual control tank bottom angle valve is manufactured in y type integrated structure;

2. Short stroke for open/close operation;

3.lowering disc type (the valve is opened into valve) can be designed if needed.

4.The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.

5. Crust breaking for disc rising type;

6.Disc is designed as external disc.

7.With temperature keeping function, protect the medium from solidification  &  crystallization.

TECHNICAL SPECIFICATION :

Size: DN50-DN350

Pressure: PN10-PN16

Body Material: WCB

Connection Type:Flange

APPLICATION:

Petroleum

Metallurgy

Pharmacy

Chemical
