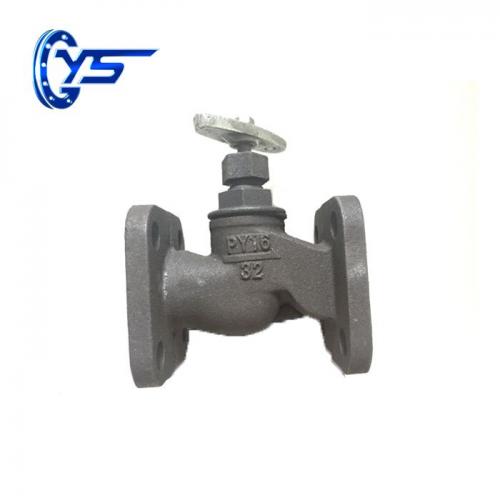

• Product Name: Square Flange Globe Valve
• Model Number: DN 15-200mm
• Brand Name: HBYS
• Place of Origin: Hebei, China
• Minimum Order Quantity: 1
• Supply Capacity: 500/month
• Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

Square Flange Globe Valve DN 15-200mm Description

DN 15-200mm Square Flange Globe Valve  globe valve manufacturer  globe valve supplier    Flanged Globe Valve

Medium temperature: ≤200 ℃
Operation method: manual
Medium: water, steam
Caliber: DN25-50
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: flange

globe valve Details

Square Flange Globe Valve Main parts and materials

Parts name

Material

Valve body Bonnet

Grey iron

Disc

Grey iron

Stem

Carbon steel

Square Flange Globe Valve Function and specification

Type

Nominal
pressure
（mpa）

Testing pressure（mpa）

Suitable
temperature

Suitable
medium

Strength
(Water)

Enclose
(Water)

J41T-16

1.6

2.40

1.80

≤200℃

water, steam

Square Flange Globe Valve Outline and connecting measurement

Type

Nominal
DN(mm）

Measurement（mm）

L

L1

b

f

D1

D2

4xφ14

J41T-16

25

120

16

14

2

φ85

φ68

4*φ14

32

140

17

16

2

φ100

φ78

4*φ18

40

170

21

16

2

φ110

φ88

4*φ18

50

200

22

16

3

φ125

φ102

4*φ18

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve, butterfly valve are all our main product.

Click here to learn more about valves.
