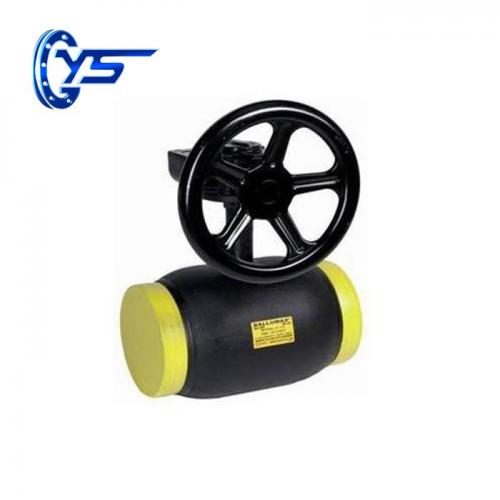

Full Welded Ball Valve DN200-1200 Description

Full Welded Ball Valve  industrial ball valve supplier  China Best Ball Valve Price   flanged ball valve manufacturer

Medium temperature: ≤200 ℃
Operation mode: bevel gear / denso
Medium: water, oil, steam
Caliber: DN200-1200
Pressure: 1.6-2.5mpa
Body material: WCB
Connection method: welding

3 way ball valve Details

Full Welded Ball Valve Main parts and materials

Parts name

Material

Valve body

WCB

Ball

stainless steel

Valve stem

stainless steel

seal

PTFE

Full Welded Ball Valve Function and specification

Type

Nominal pressure
（mpa）

Testing pressure（mpa）

Suitable
temperature

Suitable
medium

Strength
(Water)

Enclose
(Water)

Q361F-16C

1.6

2.4

1.8

≤200℃

Water, oil, steam

Q361F-25C

2.5

3.8

2.8

≤200℃

Water, oil, steam

Full Welded Ball Valve Outline and connecting measurement

PN

Nominal
DN(mm）

Measurement（mm）

L

D

D1

D2
b-f

H

16
25

200

400

150

219.1

273

315

250

530

200

273

355.6

398

300

635

250

323.9

457

465

350

686

300

377

508

530

400

762

350

426

595

530

450

838

450

480

595

530

500

914

400

530

680

630

600

1067

500

630

810

762

700

1346

59

730

982

830

800

1524

690

830

1130

910

900

1727

790

930

1285

1025

1000

1900

890

1016

1405

1165

1200

2050

1190

1219

1576

1289

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve, butterfly valve are all our main product.
