• Product Name: DIN U Type Strainer
• Model Number: DN10-100mm
• Brand Name: HBYS
• Place of Origin: Hebei, China
• Minimum Order Quantity: 1
• Supply Capacity: 500/month
• Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

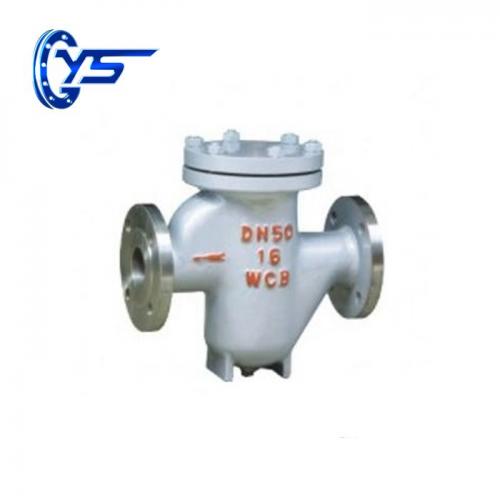

DIN U Type Strainer DN10-100mm Description

DIN U Type Strainer  DIN Strainer  DIN SERIES  DIN Valve Manufacturer

Medium temperature: ≤350 ℃
Medium: water, oil, air, steam
Caliber: DN10-100mm
Type: UG-A / UG-B
Body material: carbon steel, stainless steel
Connection method: flange

DIN SERIES Details

DIN U Type Strainer Material of main parts

Part Name

material

Body / bonnet

Carbon steel, stainless steel

Filter cover

Carbon steel, stainless steel

Filter mesh

stainless steel

Gasket

Flexible graphite

DIN U Type Strainer performance specifications

model

Nominal pressure
(mpa)

Test pressure (mpa)

proper temperature

Applicable medium

Strength (water)

Sealed (water)

PN16

1.60

2.40

1.76

≤350 ℃

Water, oil, air, steam

PN25

2.50

3.75

2.75

DIN U Type Strainer dimensions and connection dimensions

model

Nominal diameter
(mm)

Dimensions

A

L

H

UG-A

10

150

80

125

15

150

80

125

20

180

100

153

25

180

100

153

40

200

155

304

50

300

155

340

65

340

220

380

80

400

250

420

100

500

295

502

150

600

335

650

200

786

395

770

model

Nominal diameter
(mm)

Dimensions

A

H1

H2

UG-B

15

270

90

145

20

270

90

145

25

270

90

145

32

320

125

175

40

320

125

175

50

320

125

175

65

430

140

220

80

430

140

220

100

430

140

220

125

460

160

235

150

460

170

235

200

460

190

235

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve, butterfly valve are all our main product.
