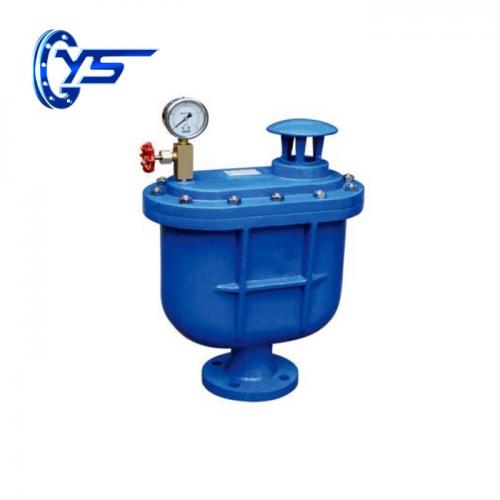

Compound exhaust valve DN50-DN300 Description

Compound exhaust valve CARX-10C   Compound Exhaust Valve Factory

Medium: water
caliber: DN50-DN300
pressure: 1.0-1.6MPA
body material: WCB
connection method: flange
design standard: national standard

HBYS Valve Details

Compound exhaust valve CARX-10C Material of main parts

Part Name

material

Body / bonnet

WCB

Float

304

Disc

304

Composite exhaust valve performance specifications

model

Nominal pressure
(MPA)

Test pressure (mpa) water

Applicable temperature (℃)

Applicable medium

strength

seal

CARX-10C

1.0

1.50

1.10

≤80 ℃

water

Composite exhaust valve dimensions and connection dimensions

model

Nominal diameter
(mm)

Size (mm)

L

O

C

g

bf

n-φd

CARX-10C

50

320

165

125

99

19-3

4 * φ19

65

320

185

145

118

19-3

4 * φ19

80

350

200

160

132

19-3

8 * φ19

100

440

220

180

156

19-3

8 * φ19

125

490

250

210

184

19-3

8 * φ19

150

540

285

240

211

19-3

8 * φ23

200

700

340

295

266

20-3

8 * φ23

250

870

395

350

319

22-3

12 * φ23

300

1040

445

400

370

24.5-4

12 * φ23
