• Product Name: Gost Cast Iron Gate Valve
• Model Number: Z44T-10/Z41T-16
• Brand Name: HBYS
• Place of Origin: Hebei, China
• Minimum Order Quantity: 1
• Supply Capacity: 500/month
• Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

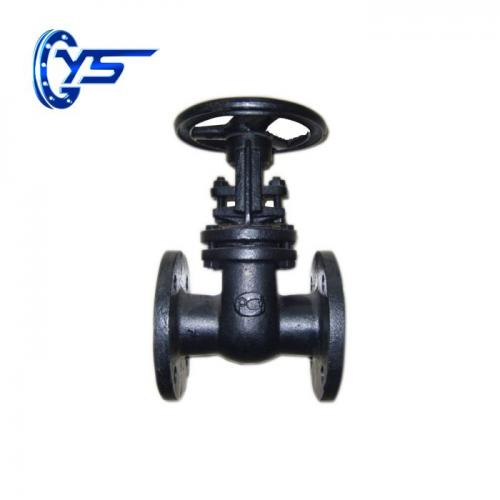

Gost Cast Iron Gate Valve Z44T-10/Z41T-16 Description

Gost  Cast Iron Gate Valve Z44T-10/Z41T-16   gate valve manufacturer  industrial gate valve supplier

Material: gray/ cast iron/ HT200
Medium temperature: ≤200°C
Mode of operation: manual/ Electric
Medium: water, steam
Caliber: DN50-1200
Valve type: gate valve
Connection method: flange
Working pressure: 1.0/1.6Mpa

Gost  Cast Iron Gate Valve Z44T-10/Z41T-10

Gost  Cast Iron Gate Valve Z44T-10/Z41T-16 Main parts and materials

Parts name

Material

Valve body Bonnet

Grey iron

Disc

Grey iron

Stem

WCB

Yoke nut

Ductile iron

Gost  Cast Iron Gate Valve Z41/44T-10 Function and specification

Type

Nominal
pressure

Testing pressure

Suitable
temperature

Suitable
medium

Strength
(Water)

Enclose
(Water)

Z41/44T-10

1.0

1.5

1.1

≤200℃

Water，Vapour

Gost  Cast Iron Gate Valve Z41/44T-10 Outline and connecting measurement

Type

Nominal
DN(mm）

Measurement（mm）

L

D

D1

D2

b-f

z-φd

Z41H-16C

50

180

160

125

100

17-2

4*φ18

80

210

195

160

135

19-2

4*φ18

100

230

215

180

155

19-2

8*φ18

150

280

280

240

210

21-3

8*φ23

200

330

340

295

265

23-3

12*φ23

250

450

395

350

320

26-3

12*φ23

300

500

445

400

368

26-3

12*φ23

Tips:

1.Compact structure, reasonable design, good valve rigidity, smooth passage.

2.The use of flexible graphite packing, reliable sealing, light and flexible operation

Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,Water treatment and etc.

3 way gate valve Advantages:

1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding.

6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7.The kind valve we usually use Wooden cases to package, We also can according to specific customer's requests.
