• Product Name: Cast Steel Globe Valve
• Model Number: DN 15-250mm
• Brand Name: HBYS
• Place of Origin: Hebei, China
• Minimum Order Quantity: 1
• Supply Capacity: 500/month
• Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

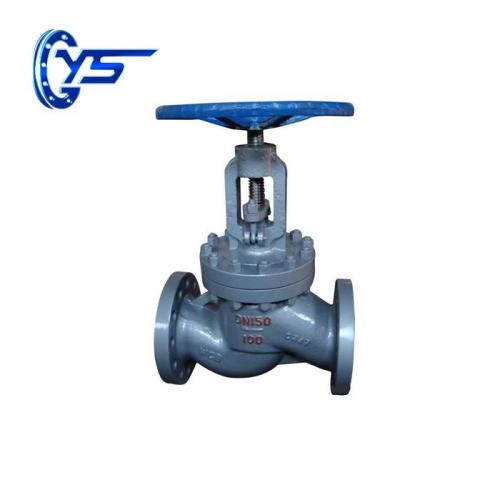

Cast Steel Globe Valve DN 15-250mm Description

DN 15-250mm Cast Steel Globe Valve  globe valve manufacturer  GOST SERIES

Medium temperature: ≤425 ℃
Operating mode: manual / electric
medium: water, oil, steam, etc.
Caliber: DN50-1000
Pressure: 1.6-16.0mpa
Body material: WCB
Connection method: flange

Square Flange Globe Valve Details

Cast Steel Globe Valve Material of main parts of cast steel globe valve

Part Name

material

Body / bonnet

WCB

gate

WCB

Valve stem

WCB / 2cr13

Stem nut

Ductile iron / brass

Cast Steel Globe Valve Performance specifications of cast steel globe valve

model

Nominal pressure
(mpa)

Test pressure (mpa)

proper temperature

Applicable medium

Strength (water)

Sealed (water)

J41 / 941H / Y-16C

1.6

2.40

1.80

—29—425 ° C

Water, steam, oil, etc.

J41 / 941H / Y-25C

2.5

3.80

2.80

J41 / 941H / Y-40C

4.0

6.15

4.51

J41 / 941H / Y-64C

6.4

9.75

7.15

External dimensions and connection dimensions of cast steel globe valve

model

Nominal diameter
(mm)

Size (mm)

L

D

D1

D2

bf

z-φd

H1

J41 / 941H / Y-16C

15

130

95

65

45

14-2

4 * φ14

205

20

150

105

75

55

14-2

4 * φ14

211

25

160

115

85

65

14-2

4 * φ14

223

32

180

135

100

78

16-2

4 * φ18

250

40

200

145

110

85

16-3

4 * φ18

288

50

230

160

125

100

16-3

4 * φ18

321

65

290

180

145

120

18-3

4 * φ18

341

80

310

195

160

135

20-3

8 * φ18

385

100

350

215

180

155

20-3

8 * φ18

437

125

400

245

210

185

22-3

8 * φ18

471

150

480

280

240

210

24-3

8 * φ23

516

200

600

335

295

265

26-3

12 * φ23

610

Tips:

Compact structure, reasonable design, good valve rigidity, smooth passage.

   2.The use of flexible graphite packing, reliable sealing, light and flexible operation

Flanged Globe Valve Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.

Product Advantages:

We have Sand or Precision casting technology,So we can as your drawing design and production.

Customers' logos are available cast on the valve body.

  3. All our casting with tempering procedure before Processing.

  4. Use the CNC lathe during whole process.

  5. The disc sealing surface use plasma welding machine welding.

  6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

  7.The kind valve we usually use Pallets to package, We also can according to specific customer's requests.

Company Advantages:

1.We are manufacturer Since 1992.

2.CE,API,ISO approved.

3.Fast delivery.

4.Low price with high quality.

5.Professional work Team!
