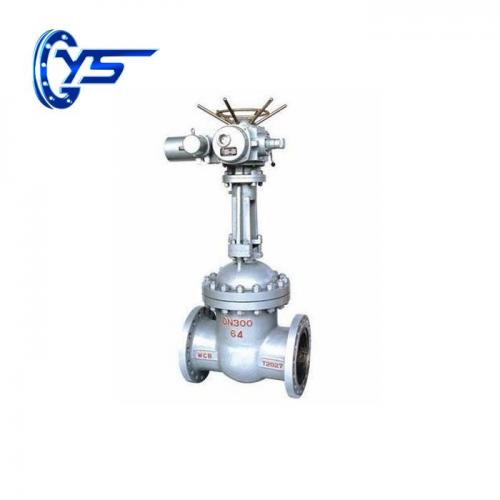

• Product Name: cast steel electric gate valve
• Model Number: Z941H-16C / 25 DN 50-1000mm
• Brand Name: HBYS
• Place of Origin: Hebei, China
• Minimum Order Quantity: 1
• Supply Capacity: 500/month
• Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

cast steel electric gate valve Z941H-16C / 25 DN 50-1000mm Description

Z941H-16C / 25 DN 50-1000mm cast steel electric gate valve  Brass Gate Valve for sale

Material: WCB

Medium temperature: -29-425 ℃

Operation mode: electric

Medium: water, steam, oil, etc.

Caliber: DN50-1000

Valve Type: Gate Valve

Connection method: flange / welding

Body material: WCB

Working pressure: 1.6-6.4Mpa

This product is suitable for all kinds of pipes that are fully open and fully closed, not for throttling.

GOST SERIES Details

Outer dimensions and connection dimensions of cast steel electric gate valves

model

Material of main parts of cast steel electric gate valve

Part Name

material

Body / bonnet

WCB

gate

WCB

Valve stem

WCB / 2cr13

Stem nut

Ductile iron / brass

Performance specifications of cast steel electric gate valve

model

Nominal pressure
(mpa)

Test pressure (mpa)

proper temperature

Applicable medium

Strength (water)

Sealed (water)

Z941H-16C

1.6

2.4

1.76

—29—425 ° C

Water, steam, oil, etc.

Z941H-25C

2.5

3.8

2.8

Tips:

1.Compact structure, reasonable design, good valve rigidity, smooth passage.

2.The use of flexible graphite packing, reliable sealing, light and flexible operation

industrial gate valve Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,Water treatment and etc.

slurry gate knife gate valve Advantages:

1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding.

6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7.The kind valve we usually use Wooden cases to package, We also can according to specific customer's requests.

Company Advantages:

1.We are manufacturer Since 1992.

2.CE,API,ISO approved.

3.Fast delivery.

4.Low price with high quality.

5.Professional work Team!
