• Product Name: thread screw 110V electric motorized ball valve for Industrial humidifier
• Model Number: CWX-15
• Brand Name: TF
• Place of Origin: Tianjin, China
• Minimum Order Quantity: 1 Piece
• Supply Capacity: 20000 Piece/month
• Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

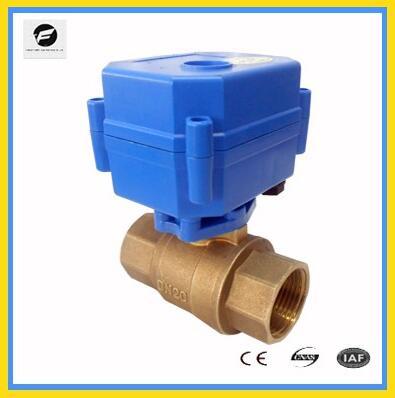

thread screw 110V electric motorized ball valve for Industrial humidifier CWX-15 Description

Application:

1.HVAC

2.Pure water and water filter system and water treatment

3.Chemical process

4.Small equipment for automatic control

5.Replacing solenoid valve, particularly when solenoid cannot  work reliably

6.Industrial humidifier

7.Water-saving shower system

8.Irrigation system

9.solar heater water system

10.water-cycle and offer-grid system

Features:

1).Smart shape,Perform reliably, large output torque, as long as 80000-100000 times.

multi-angel assembling,convenience for all kinds of requirements.

2).Float ball design,no leak, most suitable for heavy dirt and long time no action.

3).The conditions that solenoid valve can not be worked.

4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type)

5). High protection class, can be worked under most conditions.

Technical Parameter:

Actuator rotation:90 degree

Actuator motor:Micro DC motor

Actuator color:Black,Blue,Red

Actuator control wiring:2,3,.5 wires(CR01 to CR06 Wiring)

Actuator enclosure:IP65

Actuator output torque:15Q-1.5Nm,15N-2N.m,25S-2N.m,60P-6N.m

Medium temperature:0-100°C

Power Consumption:15Q,15N,25S,20P<2W,60P<6W

Product life:80,000 times stainless steel brass thread screw 110V electric motorized ball valve for Industrial humidifier

Special function:Position indicator;quick open

                 signal feedback,manual override

                 fail safe(auto-return) function

Valve open/close time:15Q-3sec,15N-5sec,25S-7sec,60P-11sec

Valve thread Connection:GB/BSP/NPT

Valve Pressure:1.0Mpa/150psi/PN10

Valve body Material: Stainless steel (304, 316), Brass(Hpb58-3/59,Ni plated Brass

Valve Size: DN8,DN10,DN15,DN20,DN25,DN32

Working Medium:Pure water,water,50% glycol,Oil,Air

Actuator Working Voltage:5VDC,9-24VAC/DC,85-265VAC
