• Product Name: Mini 3 Way Electric Ball Valve for HVAC
• Model Number: CWX-15
• Brand Name: TF
• Place of Origin: Tianjin, China
• Minimum Order Quantity: 1 Piece
• Supply Capacity: 20000 Piece/month
• Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

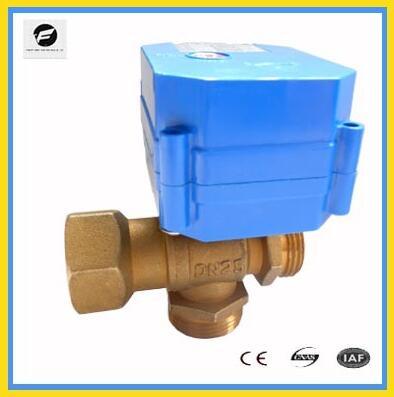

Mini 3 Way Electric Ball Valve for HVAC CWX-15 Description

Mini Motorized Ball Valve, Size from 1/4" to 1". AC/dc 5V, 12V, 24V, 110V, 220V. 2-way and 3-way, brass, stainless steel, CPVC

Features:

Mini dimension suits for small equipment

Patented technology-floating seal structure

Long service life 700,000 to 100,000 circles

Low working current, only 60 to 80mA

IP67 and F type are available

Manual override function is safe and easy

Applications:

HVAC CWX-15N/Q Mini 3 Way Electric Ball Valve for HVAC

Water treatment

Small equipment for automatic control

Replacing solenoid valve, particularly when solenoid cannot work reliably

Technical parameters:

Size: 1/2 to 1 inches

Material: stainless steel (304, 316), brass, PPO

Voltage: 5, 12, 24, 110 to 220V AC/DC

Working pressure: 1.0 or 1.6mPa

Actuator rotation: 90 degree

Rotation direction: double acting

Power: maximum 5W

Manual override: available

Material of main parts:

Actuator: heat-resistant ABS

Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .

Body: brass or stainless steel

Ball: brass or stainless steel

Stem: brass or stainless steel
