• Product Name: Normally Close Compact Solenoid Valve
• Model Number: GG-003
• Brand Name: GOGO ATC
• Place of Origin: Zhejiang, China
• Minimum Order Quantity: 50 Pieces
• Supply Capacity: 12000 Pieces/month
• Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

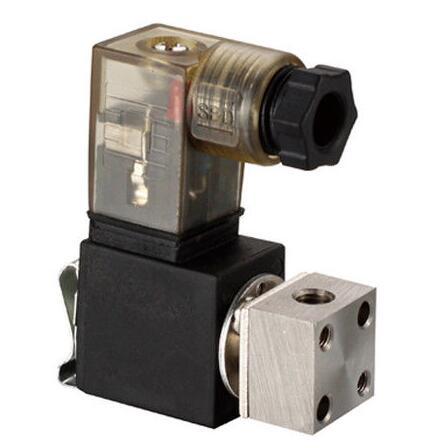

Normally Close Compact Solenoid Valve GG-003 Description

low power small micro solenoid air valve compact valve for mini automatic machine

Specification

Model: V165B06 V185B06

Working Medium: Compressed air/Ozone

Working type: Direct action 2/2 Direct action 3/2

Pattern: Normally close

Orifice: 1.5mm 1.8mm

Insulation class: F class

Connection ports: M5

Pretection class: IP65

Working-pressure:  0~1.0MPa -0.1~0.1MPa

Rated voltage: AC/DC24V~220V -10%~+10%

Power: AC4VA/DC2.8W

Max.pressure: 2.0MPa

Material of Body: Brass/Stainless steel SUS316

Seal Material: EPDM

1.Single or manifold for different applications, one inlet with some outlets based on manifold.
2.Mostly used as pilot valves for the pilot type valves or control the mini Cylinders.
3.Very low power ,is suitable for PC control system.
4.Compact design,light and easy for assembly.
5.No lubrication requested ,long life design.
6.Led indicator and protection circult with coil.

Shipment and Payment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Warranty of solenoid valve
1 years warranty
Maintenance instructions:
1. attention to check the use of components, in the transport process is damaged, and then install the use of.
2. When installing, please note that the gas flow direction and the takeover are correct.
3. when using, please strictly comply with the technical requirements, such as the operating voltage, operating frequency, working pressure, the use of temperature, the whole machine debugging, it is recommended to use a manual device debugging, and then through power debugging.
4. Please pay attention to dust, it is recommended to install the exhaust port or muffler muffler throttle.
5. When connecting pipe, pay attention to only release the strap around the joint may not exceed the end face of the tooth, and pay attention to the elimination of pipe fittings, metal particles inside the pipe, dust and oil, etc
