6v brass stainless steel Electric modulating ball Valve for saving water system CWX15N/Q Description

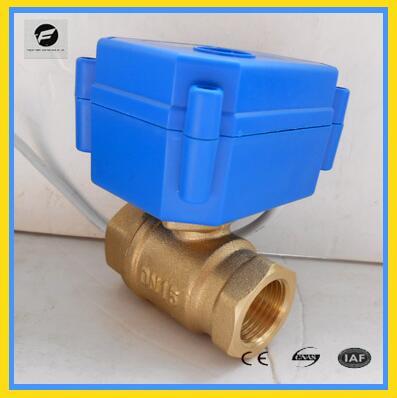

6v brass stainless steel Electric modulating ball Valve for saving water system

Electric ball valve features: excellent capacity of water stoppage, large water flow rate, zero dirt block, low torque, nice design and easy installation.

Valve Size: BSP1/2"

Valve Material: SS304

Circulation Medium: Water,Air

Max Working Pressure: 1.0Mpa

Liquid Temperature: 0-90 degrees C

Work Volt: DC24V

Max Torque: 1.5Nm

Rated Current: 45-100mA

Open/Close Time: 3-5seconds

Working Life: 100,000 Circles

Protection Class: IP65

Valve Body Material: SS304, brass

Actuator Material: Heat-resistant ABS

Sealing Material: PTFE,silicon rubber ball seat,EPDM and NBR stem seat,NBR o-rings

Manual Override: No

Actuator Rotation: 90 degrees C

Cable Length: 0.5m

Wiring Control Method: CR01 CR02   CR03  CR04 CR05

Material:

Valve Body:  Hpb58-3 and S304 ;

 Valve Seal:  Stem:  EPDM with double O-ring ;

 Ball:  PTFE+EPDM with double O-ring;

Actuator enclosure:  PC+10GF;

 Actuator revolving shaft:  POM;

Specifications:

Actuator motor: Reversible synchronous motor

Power supply: AC220V, AC110V, AC24V

Output torque: 1.5~6N.m

Power consumption:  <5W

Control way: on/off 6v brass stainless steel Electric modulating ball Valve for saving water system

Pipe connection: G/BSP/NPT

Media temperature range: 2°C~90°C

Ambient temperature: -5°C~60°C

Running time: 3-5S/50Hz, 3-5S/60Hz

Ambient humidity: <90%

Pressure grade:  PN16

Protect rank:  IP65
