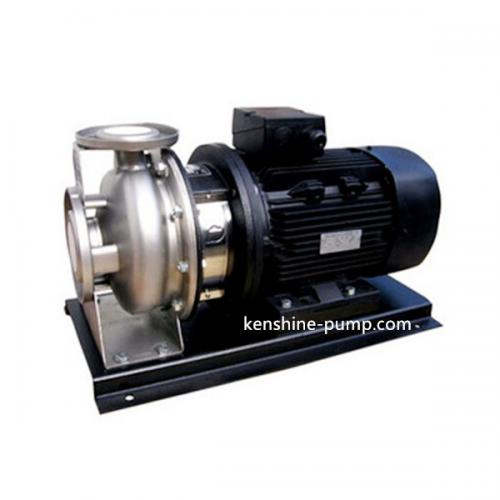

ZS Stainless steel single stage pump ZS65-50-160 Description

ZS type stainless steel horizontal single-stage centrifugal pump is made of stainless-steel plate stamping and expansion welding and other advanced technology. It can replace the traditional IS centrifugal pump and has beautiful appearance, light structure, high efficiency, energy saving, durability, light corrosion resistance and low noise. ZS pump is used to convey Clean, thin, non-flammable and explosive liquids without solid particles or fibers.

Application

ZS type stainless steel horizontal single-stage centrifugal pump is a wide range of multi-functional pump. It can transport a variety of water or industrial liquids including different media and is suitable for different temperature, flow, and pressure range.

Water supply: water plant filtration, transportation and regional water delivery and supercharging

Industrial pressurization: flow water system, cleaning system

Industrial liquid transport: boiler feed water, condensing system, cooling and air conditioning system, machine tools, acid and alkali transport

Water treatment: distillation system or separator, swimming pool, etc.

Farmland irrigation, petrochemical industry, medicine and health care, etc.

Installation condition:

ZS type stainless steel horizontal single-stage centrifugal pump is a direct connection of pump shaft, which is composed of pump, pump shaft and standard motor.

1) the pump shall be installed in a place with ventilation and anti-freezing

2) the pump shall be installed to ensure that the pump is not affected by the tension of the system pipeline when in use

3) if the pump is installed outdoors, it must be equipped with a suitable outer cover to prevent water or condensation of the electrical components

4) in order to facilitate inspection and maintenance, sufficient space must be left around the unit.

5) the electrical wiring device shall ensure that the pump is not damaged by phase loss, voltage instability, electricity leakage and overload.

6) the pump shall be installed horizontally on the base. The horizontal direction is the suction inlet of the pump and the vertical direction is the discharge outlet of the pump.

Working condition:

Liquid temperature between -20℃ and +100℃;

High ambient temperature +40℃;

1000 meters above sea level;

System high pressure 10bar.

The motor is a fully enclosed, air-cooled standard motor.

Protection level: IP55;

Insulation grade: F;

Standard voltage: 50Hz 1×220V 3×380V
