• Product Name: Electric powered chemical pumps for HCL and NaOH
• Model Number: GB-S1360/0.7
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 300sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

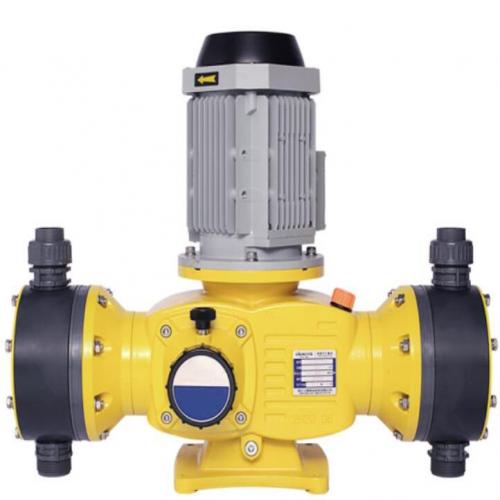

Electric powered chemical pumps for HCL and NaOH GB-S1360/0.7 Description

GB-S mechanical diaphragm metering pump is high flow duplex heads

electric powered chemical pumps. It is also robust and compact design which

is easy for installation and cost effective. The duplex heads can reduce the

pulse and energy. It is capable of dosing flow rate up to 3600lph and pressure

up to 7 bars.

Specifications:

Capacity range: 1360 l/h -3600lh under 50Hz;

Pressure range: 3-7 bars;

Max Processing Temperature: from 0-70℃ (158℉);

Stroke Adjustment: 0-100%;

Suction lift: 1.5m;

Accuracy: ±2% of set point;

Materials:

Pump head: PVC, PVDF,SS304,SS316 ;

Diaphragm: Composite PTFE diaphragm;

Check Valve: PVC, PVDF,SS304,SS316 (same as pump head

selection);

Valve ball: Ceramic, SS304,SS316;

Power Supply:

380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
