• Product Name: ZS horizontal stainless steel single stage centrifugal feed water pump
• Model Number: ZS65-50-200/11
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 500Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

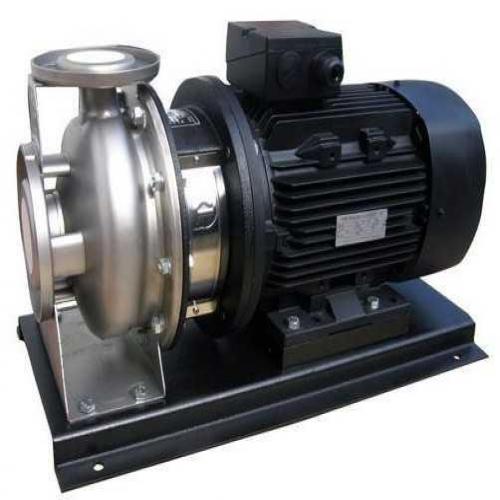

ZS horizontal stainless steel single stage centrifugal feed water pump ZS65-50-200/11 Description

Pump Summary:

ZS horizontal stainless- steel single-stage centrifugal pump is a new generation of centrifugal pump, which is made of advanced technologies such as stainless-steel plate stamping, expanding and welding. It can replace traditional IS pump and general corrosion resistant pump. The utility model has the advantages of beautiful appearance, light structure, high efficiency, energy saving, durability, light corrosion resistance, low noise, etc.

Operating conditions of horizontal stainless steel single-stage centrifugal pump:

Clean, thin, non-flammable and explosive liquid without solid particles and fibers;

Liquid with temperature between - 20 ℃ and+100 ℃;

High ambient temperature+40 ℃

High altitude: 1000m

The high pressure of the system is 10bar.

Horizontal stainless steel single-stage centrifugal pump motor:

The motor is a fully enclosed, air-cooled two pole standard motor

Protection grade: IP55, Insulation grade: F, Standard voltage, 50Hz：single phase × 220V &three phase × 380V

Horizontal stainless steel single-stage centrifugal pump application:

ZS horizontal stainless-steel single-stage centrifugal pump is a multi-functional product with a wide range of applications. It can transport various media, including water or industrial liquid, and is applicable to different temperature, flow and pressure ranges.

Its typical applications mainly include the following aspects:

Water supply: filtration, transmission, partition water supply and main pipe pressurization of the water plant; Industrial pressurization: process water system, cleaning system; Industrial liquid transportation: boiler water supply, condensation system, cooling and air conditioning system, machine tool matching, acid and alkali transportation; Water treatment: distillation system or separator, swimming pool, etc; Farmland irrigation, petrochemical industry, medicine and health, etc.
