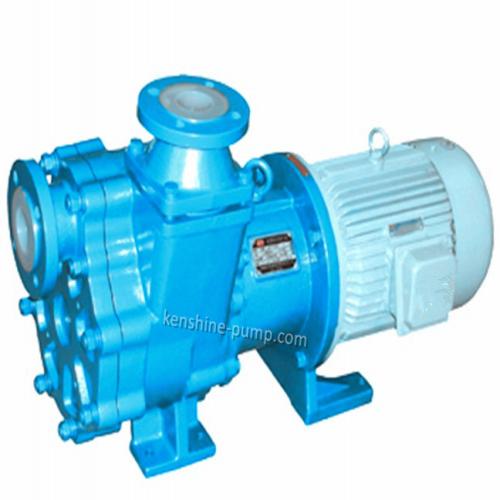

• Product Name: ZMD-F Fluorine plastic magnetic self priming pump
• Model Number: 65ZMD-40F
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

ZMD-F Fluorine plastic magnetic self priming pump 65ZMD-40F Description

ZMD-F Fluorine plastic self priming magnetic pump adopts the structure of external mixed type axial return pump body which is composed of liquid suction chamber, liquid storage chamber, volute case, backflow hole, gas-liquid separation chamber and other parts. When pump starts, under the action of centrifugal force, the remaining liquid in the suction chamber and the air in the pipeline is stirred by impeller into air water mixture and then the mixture enters into the gas-liquid separation chamber through the volute. As the speed is slower, gas and water is separated. At the moment air is being exhausted from liquid exporter and  liquid returns to the pump through return flow hole. After many cycles, the air into inlet pipeline is exhausted and the pump forms certain vacuum  to achieve self priming performance.

ZMD-F Fluorine plastic self priming Magnetic pump has the advantages of compact structure, beautiful appearance, small size, low noise, reliable operation, easy maintenance etc. It can be widely used in chemical industry, pharmaceutical, petroleum, electroplating, food, film and photographic printing, scientific research institutions, national defense industry and other industries to pump acid, lye, oil rare and precious liquid, venom, volatile liquid, as well as circulating water equipment supporting, especially suitable to pump the liquid which is easy to leak, flammable, explosive ETC.

ZMD-F Series fluorine plastic self priming magnetic pump has the features of self priming and magnetic pump. The suction height is up 4 or 5m. The pump has no leakage as the magnetic centrifugal pump. Also the flow parts for the pump is fluorine plastic with very good corrosion resistant.

Flow rate:8 to 65m3/h

Head:12 to 50m

Motor power:2.2KW TO 18.5KW

Pump material: fluorine plastic

Model    Flow     Head    Motor power    NPSH(m)    Inlet  /outlet    Efficiency    Weight

(m3/h)    (m)    (KW)    Inlet  (mm)    outlet  (mm)    (%)    （Kg）

40ZMD-20F    8    20    2.2    3    40    25    16    110

40ZMD-32F    6    32    4    3    26    110

40ZMD-25F    10    25    4    3    24    110

50ZMD-20F    12    20    2.2    3    50    50    25    188

50ZMD-32F    15    32    5.5    3    44    188

50ZMD-25F    20    25    5.5    3    44    188

50ZMD-50F    8    50    7.5    3.5    21    188

50ZMD-45F    12.5    45    7.5    3.5    35    188

50ZMD-40F    15    40    7.5    3.5    40    188

65ZMD-35F    20    35    7.5    3.5    65    50    40    200

65ZMD-32F    30    32    7.5    3.5    52    200

65ZMD-25F    35    25    7.5    3.5    48    200

65ZMD-50F    20    50    11    4.5    65    40    40    290

65ZMD-45F    25    45    11    4.5    44    290

65ZMD-40F    35    40    11    4.5    53    290

80ZMD-35F    35    35    11    3.5    80    65    50    280

80ZMD-32F    60    32    11    3.5    55    280

80ZMD-25F    65    25    11    3.5    50    280

80ZMD-50F    35    50    18.5    4.5    80    50    38    320

80ZMD-45F    50    45    18.5    3.5    50    320

80ZMD-40F    60    40    18.5    3.5    48    320
