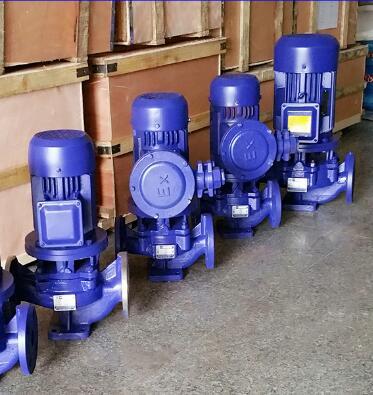

YG Vertical pipeline centrifugal oil pump
- Product Name: YG Vertical pipeline centrifugal oil pump
- Model Number: YG80-200
- Brand Name: kenshine-pump
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1
- Supply Capacity: 1000Sets per month/month
- Payment: T/T in advance
- MemberShip: Free Member
- Inquiry Now
YG Vertical pipeline centrifugal oil pump YG80-200 Description
YG Series pipeline oil pump with explosion proof motor
YG series pipeline oil pump is designed and manufactured according to API610 and GB3215-82 standard. It can be used outdoor without pump house.
2.Inlet and outlet flange are on the same centric line and can be set directly into pipeline. Vertical structure let the pump small volume and convenient installation.
3.Mechanical seal with high quality has no leakage.
4.Pump is driven by explosion proof motor of explosion mark DIIBT4 to insure good explosion proof.
YG Series pipeline oil pump is suitable to transport non corrosive and flammable and explosive liquids in petroleum and light weave and chemical industry and machine etc industries. Medium temperature＜120℃, Density(ρ)＜1000kg/m3
Parameter:
| Flow rate | 2-1000m3/h |
|---|---|
| Head | 3-125m |
| pump material | cast iron case,bronze impeller, explosion-proof motor |
| mechanical seal | vertical pump |
| centrifugal pump | oil pump |
| diesel oil pump | gasoline pump |
| kerosene pump | pipeline pump |
| transfer pump | inline pump |
