• Product Name: YG Vertical pipeline centrifugal oil pump
• Model Number: YG80-200
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

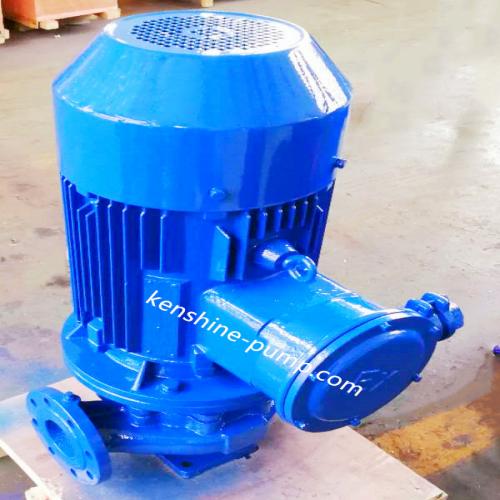

YG Vertical pipeline centrifugal oil pump YG80-200 Description

YG pipeline oil pump is designed and manufactured in accordance with the American petroleum institute API610 (general refinery centrifugal pump standard) and GB3215-82 (refinery chemical and petrochemical process centrifugal pump general technical conditions). YG pipeline oil pump is made of cast iron pump body with bronze impeller and driven by explosion proof motor.

1. Do not build pump room and can work outdoors.

2, Inlet and outlet flange are in the same center line and the pump can be directly installed on the pipeline, vertical structure, small area, easy installation.

3, High-quality mechanical seal, no leakage, safety and reliability.

4. EX explosion-proof motors (EXDIIBT4 explosion proof class)

YG Pipeline oil pump is used to transfer gasoline, diesel oil and kerosene etc. petroleum medium. The pumped liquids temperature: -20 to 120DegreeC.

Capacity: 1-1500m3/h

Head:5-125m
