• Product Name: YCB circle arc gear oil transfer booster pump
• Model Number: YCB0.6-1.6
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

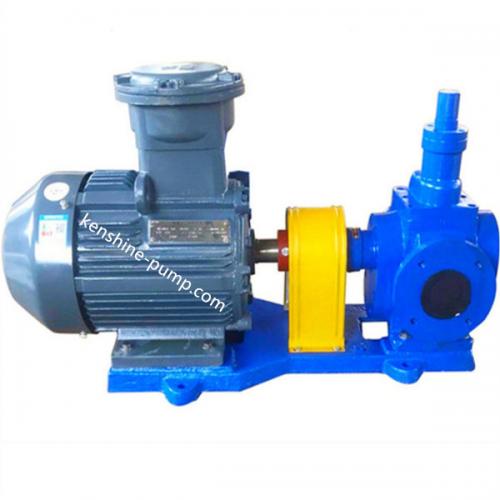

YCB circle arc gear oil transfer booster pump YCB0.6-1.6 Description

YCB circle arc gear oil pump
Pumped fluids (lubricating oil ,fuel oi, hydraulic oil  or other similar fluids with viscosity of 5-1500CST)
YCB circle arc gear oil pump is Suitable for conveying lubricating oil or other liquids of similar properties without solid particles and fibers, non-corrosive. Liquid temperature is not higher than 80℃, viscosity of 5×10-6 ~ 1.5×10-3m2/s(5-1500 CST), as well as for hydraulic transmission systems.

Scope of application
In the oil transfer system YCB gear oil pump can be used for transmission, booster pump
In the fuel system gear oil pump can be used for transport, pressure and injection fuel pump;
In the hydraulic transmission system gear pump can be used as a hydraulic pump to provide hydraulic power
It can be used as lubricating oil pump in all industrial fields.

Structural features
This series of gear pump is mainly composed of gear, shaft, pump body, pump cover, bearing sleeve, shaft end seal, etc. The gear is made of double arc sinusoidal shape. Compared with involute gear, the most prominent advantage is that the tooth profile does not slide relative to the gear during the meshing process, so the tooth surface has no wear, smooth operation, no trapped liquid, low noise, long life, high efficiency. The pump changes the traditional design to make gear pump enter a new field in design, production and use.

The pump is provided with safety valve as overload protection, and the full backflow pressure of safety valve is 1.5 times of the rated discharge pressure of the pump. It can also be adjusted separately according to actual needs within the allowable discharge pressure range. However, it should be noted that the relief valve cannot work for a long time and other relief valve can be installed on the pipeline when necessary.

Pump shaft end seal design has two forms including mechanical seal and packing seal, It can be determined according to the specific use and user requirements.
Look from the main shaft to the pump, it is for clockwise rotation.

Performance range
Flow: 0.6 to 60m3/h
Pressure: 0.6-1.6MPA
Motor power: 0.75KW-22KW
50HZ, 380-415V,3Phase, 60HZ, 440-460V, 3Phase
Cast iron pump or stainless steel pump
