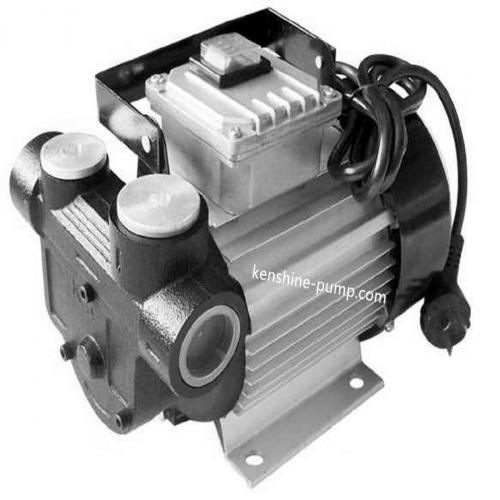

YB electric refueling oil pump

YB electric refueling oil pump
  • Product Name: YB electric refueling oil pump
  • Model Number: YB-60
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 500Sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

YB electric refueling oil pump YB-60 Description

YB electric vane oil pump

220V electric diesel oil pump, kerosene oil pump is vane pump and equipped with mechanical seal. The pump is built-in with 100 micron filter which is easy to clean and flood valve.

The pump body is made of cast iron with corrosion resistant coating and driven by Cast aluminum motor (IP54/220V/50HZ/1Phase/AC). Metal impeller is with 5 pcs vanes.

The 220v oil pump is mainly used for refueling and conveying of mining machinery, generator sets and other consumption equipment, fishing boats, pleasure boats and small refueling points, especially for the conveying of diesel oil and kerosene oil etc.

YB oil pump has the advantages of good self-priming performance, high lift, small volume, easy to carry etc.

ModelYB-60-220VVoltage220vMotor power550WFlow rate20-60L/minHead15mSuction height15mPump   inlet/outlet1inchWorking   pressure0.3MPAPump Net   weight10KGSPump size250mm*155mm*175mm


flow rate 20-60L/MIN
head 0.3MPA
pump material cast iron
220v 50HZ
single phase oil pump
refueling oil pump diesel oil pump
koresene oil pump transfer pump
kenshine-pump china pump
