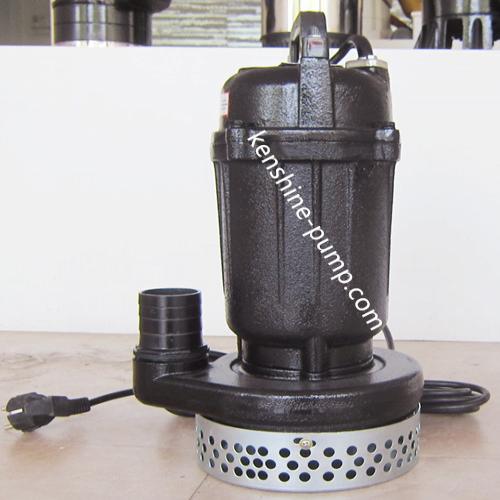

WQD Small type submersible sewage pump with 220V single phase motor 65WQD10-10-0.75 Description

WQD small type submersible sewage pump:

WQD small type submersible sewage/ dirty water pump is designed for dirty water(wastewater). The pump is made of cast iron and driven 220V Single phase motor. The motor power can be from 0.37KW to 2.2KW. WQD submersible sewage pump is used to transfer the wastewater /dirty water with solid particles or fiber etc impurity.

WQD Submersible sewage pump is widely used in industry, mine, agriculture, environment protection, building construction, such as drainage slurry, mortar, wastewater and sewage containing fiber, paper scraps, mud and sand and other solid particles. It is also an ideal equipment for irrigation.

Operation condition

Submersible depth:5m

Max. medium temperature:40℃

Max. ambient temperature:40℃

Max. pressure: 6 bar

Major material:

Pump body: Cast iron

Motor housing: Cast iron

Impeller: Cast iron

Motor wire：Copper

Mechanical seal: Ceramic& Graphite

Shaft: 45#steel

Insulation class: F

Protection class: IP68

Modelflow(m3/h)Head(m)power(kw)caliber(mm)voltage(v)40WQD5-5-0.37550.374022040WQD5-6-0.55560.554022050WQD10-8-0.751080.755022050WQD10-10-1.110101.15022050WQD13-13-1.513131.550220

flow rate	5-13m3/h
head	5-13m
pump material	cast iron or stainless steel
centrifugal pump	submersible pump
