• Product Name: Wafer Pneumatic Butterfly Valve
• Model Number: D671X-16
• Brand Name: JRVAL
• Place of Origin: Tianjin, China
• Minimum Order Quantity: 5
• Supply Capacity: 65000/month
• Payment: T/T, D/P, L/C, Paypal, Western Union
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

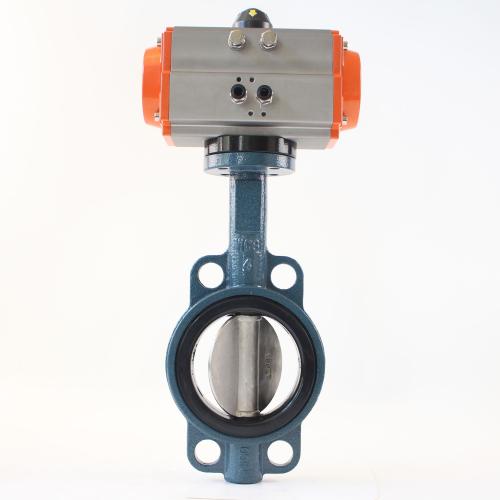

Wafer Pneumatic Butterfly Valve D671X-16 Description

Carbon steel wafer butterfly valve with pneumatic actuator

JRVAL was founded in 2004, has been focusing on carbon steel material butterfly valve production over 15 years, with hundreds of customers from both home and abroad.

Products featurers:

1) The valve stem bearing use "copper sleeve", which with good wear and corrosion resistance. Although cost is 50% higher than other materials, prolong the service life by 60-70%;

2) Rubber seat contains over 50% rubber, with stable resilience and tension. Although the cost is 30% higher than that of similar products in the market, its service life can be extended by 1-2 years; valve seat option with PTFE, NBR, EPDM, FKM etc.

3) Material of worm gear includes gray iron, ductile iron, stainless steel, aluminum alloy, etc;

4) Pneumatic actuators includes 2 type: double acting and Spring return; Double Action pneumatic actuators with double cylinder structure, including GT and AW Models; Spring Return pneumatic actuators with single cylinder structure, including GT, AT and AW Models.

5) Cost of Double action pneumatic actuator is lower than Spring return actuator;

Pneumatic Actuator Options:

DN40/DN50---AT/GT:52

DN65---AT/GT:65

DN80/DN100---AT/GT:83

DN125---AT/GT:105

DN150---AT/GT:130

DN200---AT/GT:140

DN250---AT/GT:160

DN300---AT/GT:190

DN350---AT/GT:210

DN400---AW13

DN450---AW17

DN500---AW20

DN600---AW25

DN700---AW28

DN800---AW35/40

1. Specification Parameters

Nominal Diameter DN(mm)

40～1200

Nominal Pressure PN(MPa)

1.0～1.6

Nominal Pressure (MPa)

Strength

1.5～2.4

Sealing Test

1.1～1.76

Main Parts

Valve Body

CF8/CF8M/CF3M

Valve Disc

Nickel Plated DI / Nylon Plated DI /CF8 /CF8M /CF3M /2507/ 2205

Valve Seat

EPDM/NBR/PTFE/VITON(Fluorine rubber) etc.

Connection Type

Wafer Type

1. Products Details

Pneumatic actuators includes 2 type: double acting and Spring return; Double Action pneumatic actuators with double cylinder structure, including GT and AW Models; Spring Return pneumatic actuators with single cylinder structure, including GT, AT and AW Models.

Cost of Double action pneumatic actuator is lower than Spring return actuator;

Pneumatic Actuator Options:

Butterfly valve match with AT, GT model pneumatic actuators as below：

DN40/DN50---AT/GT:52

DN65---AT/GT:65

DN80/DN100---AT/GT:83

DN125---AT/GT:105

DN150---AT/GT:130

DN200---AT/GT:140

DN250---AT/GT:160

DN300---AT/GT:190

DN350---AT/GT:210

Butterfly valve match with AW model pneumatic actuators as below：

DN400---AW13

DN450---AW17

DN500---AW20

DN600---AW25

DN700---AW28

DN800---AW35/40
