• Product Name: W Vortex booster water pump
• Model Number: 25W-25
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

W Vortex booster water pump 25W-25 Description

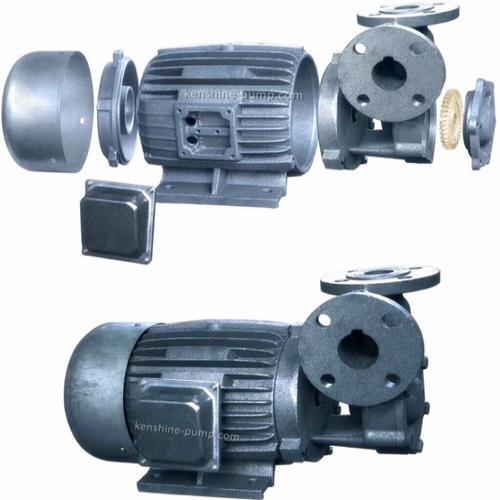

W Vortex pump is a vane pump.  W vortex pump is mainly composed of impeller, pump body and pump cover. Impeller is a disk, the circumference of the blade radial uniform arrangement. The pump body and impeller form a circular flow path, suction inlet and discharge outlet are in the outer circumference of the impeller. There is a clapboard between the suction inlet and the discharge outlet, thereby separating the suction inlet and the discharge outlet.

USES:

W single-stage direct-connect vortex pump is used for pumping water or other liquids in physical and chemical properties similar to water. Liquid temperature is less than 60. W vortex pump is commonly used in boiler feed water of form a complete set, in shipbuilding, textile, chemical, metallurgy, machinery manufacturing, aquaculture, fixed fire control voltage, heat exchange unit and remote sprinkler irrigation agriculture departments with the wide range of applications. W vortex pump is often used for boiler water supply, in shipbuilding, textile, chemical industry, metallurgy, machinery manufacturing, aquaculture, fixed fire pressure control, heat exchange unit, agricultural remote sprinkler irrigation and other departments .

Features:

1. The characteristic curve of the vortex pump is similar to that of the centrifugal pump, but it is less efficient with small flow rate and large head. Vortex pump clearance (that is, the gap between the impeller and the cover plate) can not be too large, otherwise it will significantly reduce the efficiency, so this pump can only transfer relatively pure liquid.

2. The characteristics of small volume and light weight of vortex pump have great advantages in ship installation.

3. Self-suction ability or with the help of simple installation.

4. The head characteristic curve with steep drop, so it is not sensitive to pressure fluctuation in the system.
