• Product Name: Vertical inline circulating booster pump
• Model Number: TD125-40G/4
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

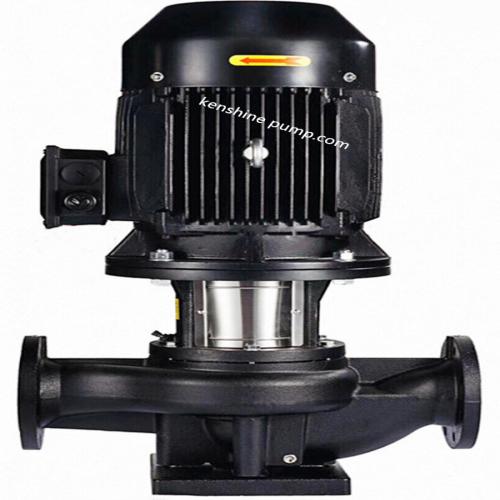

Vertical inline circulating booster pump TD125-40G/4 Description

TD Vertical inline circulating booster pump is equipped with standard electric motor and mechanical seal. The motor on the top can be pull-out for disassembly form. It is very convenient to repair the pump. It need not disassemble the pipeline system. The pumps use innovative detachable mechanical seal without disassembly of the motor.

TD Vertical pipeline booster circulation pump is used to convey Clean, thin, non-corrosive, non-flammable and non-explosive liquids without any solid particles or fibers.

Application:

Heating system: heating cycle, boiler mixed flow, temperature mixed flow, intermittent heating, waste gas heat recovery, mixed loop

Air-conditioning system: cooling water circulation

Water supply system: filtration and conveying, piping pressurization

Industrial production: flushing and cleaning system, boiler feed water, cooling water circulation, water treatment system, equipment supporting system

Performance

Flow rate: 5m3/h to 900m3/h

Head: 10.7 to 50m

Power: 2.2kW to 200 kW

Liquid temperature: -15 to 105℃

Frequency: 50 hz / 60 hz
