• Product Name: Submersible Slurry Pump
• Model Number: TJQ
• Brand Name: Hydroman™
• Place of Origin: Hebei, China
• Minimum Order Quantity: 1
• Supply Capacity: 100/month
• Payment: 100%T/T
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

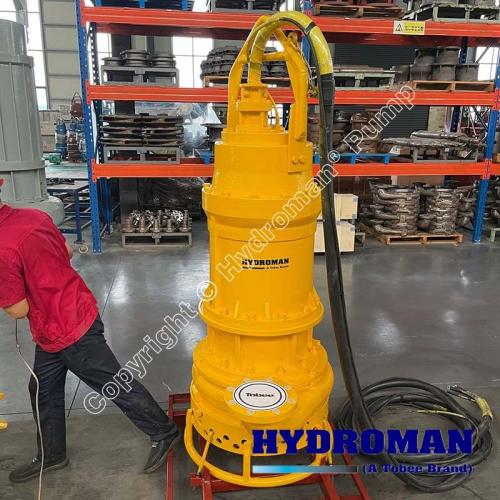

Submersible Slurry Pump TJQ Description

Email:         Web: www.hydroman.cn

Hydroman™ TJQ Submersible Slurry Pumps are heavy duty agitator submersible slurry pumps, dredge Pumps, sand Pumps, and sludge Pumps working in the underwater industry, capable of handling slurry, sand, gravel, solids and all kinds of sludge in diverse applications related to the dredging, construction, oil and mining industry as well as marine, energy, and industrial sectors. TJQ Submersible Slurry Pumps deliver massive solids production at very low operational costs. Hydroman offers the deepest submersible, largest capacity, high head, long distance, heavy duty slurry pumps available on the market.

Design Features:

▪ HIGH-EFFICIENCY HIGH CHROME REVERSIBLE AGITATOR

Doubles the life of the agitator. The excavating action is created by the hardened high chrome agitator blades. They create a current that lifts settled sediments conveying them to the suction of the impeller which delivers a continuous flow of solids to the pump discharge.

▪ LOW OPERATING RPM

Low operating RPM promotes low wear rates and extended component life. When compared to other pumps of similar capacity Hydroman has a lower operating speed.

▪ OVERSIZED MOTORS

All Hydroman electric motors are oversized and are designed for slurries up to 1.6 SG. A Hydraulic drive version is also available providing higher output. Hydroman™ hydraulic augers THY can be attached directly to the pump creating a self-contained excavating system for hard compacted sand where a mechanical excavator would otherwise be required.

▪ ROBUST CONSTRUCTION

Long life and reliability are guaranteed by robust heavy-duty construction. Extra strong wear components provide extended life between spare part changes. All parts that are exposed or subjected to abrasive wear are manufactured in GS 500 or Hi Chrome alloys.

▪ THRUST BEARINGS

All Hydroman models have been designed with dual thrust bearings to reduce vibration and counter thrust loads in both directions.

▪ SOLIDS HANDLING CHARACTERISTICS

Hydroman™ slurry pump parts have been specially designed and shaped to provide outstanding performance, providing superb solids handling capabilities but with reduced wear and solid size up to 5 inch (120 mm).

▪ STRUCTURAL CHARACTERISTICS

Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.

Service Bolt: These bolts allow easy pump disassembly, a built-in service tool.

Replaceable wear parts: casings, impellers, wear plates all can be replaced independently

Lube oil inspection ports: A wide-angle port outside the pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.

▪ LARGEST RANGE OF SUBMERSIBLE PUMPS

From 5 HP to 400 HP and discharge diameters from 3" to 16"

▪ HIGH HEAD PUMP IN THE MARKET

Handling slurries of up to 1.6 SG.

▪ OPTIONAL MECHANICAL SEAL, LIP SEAL OR HYBRID SEAL SYSTEMS

According to the application.

▪ CUTTERS HEADS AVAILABLE

Both Hydraulic and Electric, for hard compacted soil.

▪ OPTIONS FOR SEVERAL APPLICATIONS

High chrome casing, Cooling Jacket, Anti corrosion package, Anti abrasion package, Lower membrane protection, Cutter knife, Temperature and moisture sensors, custom frames to fix the pump in the boom of excavator machines.
