• Product Name: Stainless steel stamping vertical multistage pump
• Model Number: QDLF2-60
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

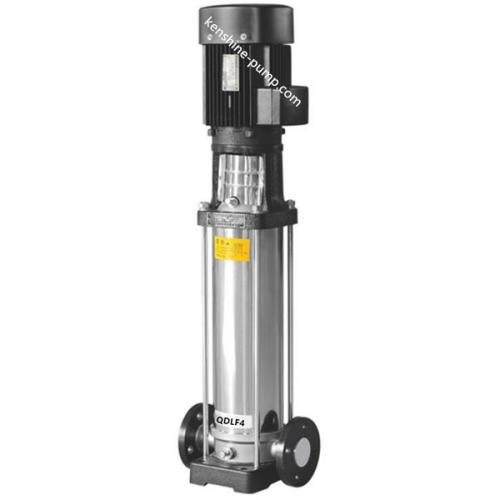

Stainless steel stamping vertical multistage pump QDLF2-60 Description

Structure (stainless steel vertical multistage centrifugal pumps)

QDLF stainless steel multistage vertical centrifugal pump is a multi-functional product of non-self-priming multi-stage centrifugal pump with standard motor. The motor shaft is directly connected to the pump head by a shaft coupling. And the pull rod bolts fix the pressure cylinder and the flow components between the pump head and the inlet and outlet water section. The pump inlet and outlet are on the same line at the bottom of the pump.

The pump can be equipped with intelligent protector according to the needs so as to effectively protect the pump from dry rotation, phase loss and overload.

Pumped liquids

QDLF stainless steel multistage vertical centrifugal pump is widely used to transport a wide variety of media from tap water to industrial liquids with different temperature, flow and pressure ranges.

QDL vertical multistage centrifugal pump is for non-corrosive liquids and QDLF stainless steel pump is for mildly corrosive liquids.

Cool or hot and clean liquids and non-flammable and explosive liquids without solid or fiber

Applications

QDLF pumps are widely used in many industries, for example, water supply: water plant filtration and transmission, water plant sub-district feed, main supercharging, high-rise building supercharging; Irrigation: farmland irrigation, sprinkler irrigation, drip irrigation; Industrial liquid transport: cooling and air conditioning systems, boiler feed and condensing systems, machine tools, acid and alkali; Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool; Industrial pressurization: process water system, cleaning system, high-pressure flushing system, fire protection system, etc.

The pump is suitable for cool or hot and clean water and soft water circulation and booster. It also can be used for slight alkali and and mine water and water in swimming pool and chlorid water.

Transport the medium like pharmacy, food and beverage.

Boiler feeding

Pressure boosting of living water

Industrial circulation system and processing system

Water treatment of environment protection.

Other applications.

Operating conditions

1. Thin, clean, non-flammable and explosive liquid without solid particles or fibers.

2. Liquid temperature: normal temperature: -15℃ to +70℃; hot water: +70℃ to +120℃

3. Ambient temperature: maximum +40℃

4. Altitude: the maximum is 1000m

5. Fully closed air-cooling motor, IP55/F class, 380V-415V, 50HZ/3Phase,  440V-460V, 60HZ,3Phase, 220-240V, 50/60HZ, Single phase.
