• Product Name: Stainless steel magnetic pump with heating jacket
• Model Number: CQB40-25-200
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

Stainless steel magnetic pump with heating jacket CQB40-25-200 Description

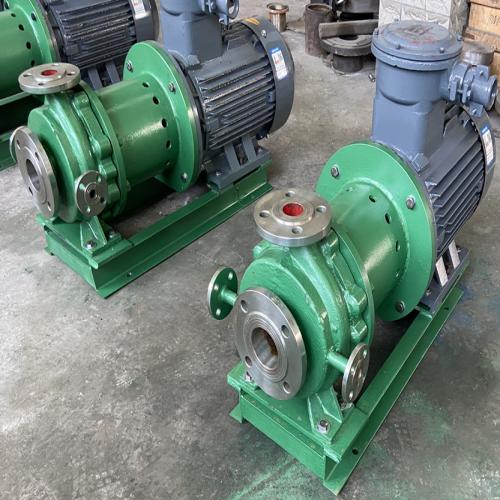

Stainless steel magnetic pump with heating jacket

The flow part is equipped with hollow jacket, and it can be used for steam, hot water, hot oil, as the conveying liquid and pump for multiple circulation, thermal insulation has a variety of ways to connect with the external thermal insulation system.

The pump is Suitable to transport the chemical medium with solidification crystallization at normal temperature, the medium of the vaporization point need to cool, also the high and cold plateau region medium.  Temperature: -80~+350℃ transport solution medium freezing point (or crystallization point temperature) high, corrosive liquids

Magnetic driving pump, no leakage

Pump material: Stainless steel

The pump is suitable to convey Flammable, explosive, volatile, toxic, high temperature and high pressure, valuable liquid and other requirements of no leakage and media are not allowed to seal pollution occasions. Liquid temperature can be low temperature or high temperature.

The idling protector can be configured according to user requirements to avoid damage caused by idling.

 No leakage completely solves the leakage problem of sealed pump. It is also one of the products to replace the shield pump
