Stainless steel horizontal multistage pump CHLF2-50 Description

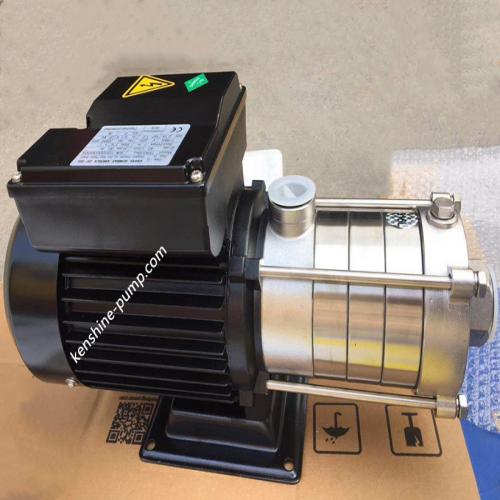

Stainless steel horizontal multistage pump

Non-self-priming type centrifugal pump. Motor has the extension shaft with the pump. Pump is equipped with repair-free mechanical seal for the Light type, multi-segment, multistage horizontal centrifugal pump. The wet parts are made of stainless steel (SS304 or SS316). Anticorrosion, small volume, beautiful appearance, light weight, low noise, long service life.

Water circulating and industrial liquids conveying.

Such as demineralized water, soft water, purification system, light oil circulation and pressurization.

1) Small central air conditioning cycle

2) Cooling system

3) Industrial cleaning

4) Water treatment (water purification)

5) Aquaculture

6) Fertilization/metering system

7) Environmental application

Working conditions

Pump is used to convey clean liquids without solid particles or fiber etc. impurity.

Liquid temperature: -15℃ to +70℃

Hot water type +70℃ to +110℃

Maximum ambient temperature: +40℃

Maximum operating pressure: 10 bar

Maximum import pressure is limited by maximum operating pressure

Liquid: PH4 to PH9

Motor: 1Phase/3Phase, 220V-240V, 380V-440V, 50HZ/60HZ
