• Product Name: Stainless steel chemical pump
• Model Number: IH40-32-125
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 600sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

Stainless steel chemical pump IH40-32-125 Description

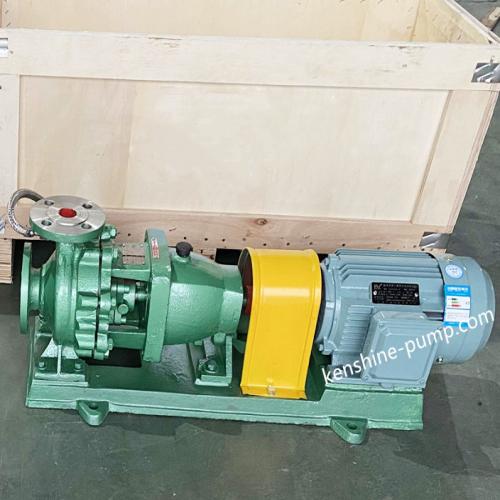

Stainless steel chemical pump

IH chemical pump meet with standard GB5662-85, ISO2858, GB/T5656-94.

IH stainless steel chemical pump is single stage and single suction cantilever centrifugal pump and it is energy saving and renewal replacement product instead of F type anticorrosive centrifugal pump. IH Stainless steel chemical pump is used in the industrial departments of conveying the corrosive liquids without suspended grains etc. impurities. Such as petroleum, chemical, synthetic fiber, fertilizer, power station, metallurgy, food and medicine etc. The conveyed medium temperature is -20 to 105 degree Celsius and can reach 180 degree Celsius if adopts the special measurement.

Pump material: stainless steel (SUS304,SUS316,SUS316L etc.)

Speed:1450rpm, 2900rpm

Back door pull out structure (unnecessary to disassemble the pipeline while repairing)

Single end face mechanical seal, double end faces mechanical seal or packing seal
