SPS Solar submersible screw pump 3SPS1.3/50-D24/140C Description

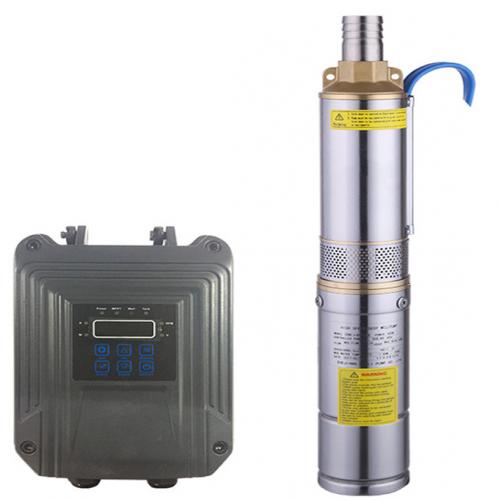

SPS Solar submersible screw pump

Agricultural greenhouse water supply system

The system consists of solar modules, solar pump controller, pumps, sprayer and pipeline network components. The system uses solar energy to provide power for the pump to pump water to meet the water needs of greenhouse cultivation.

Pump body and Pump outlet; stainless steel.

Bearing: NSK

Helical rotor and screw: stainless steel SUS304

Motor: Brushless DC motor

Controller shell: Die cast aluminum

Model    Max.Flow    Max.Head    Pump    Solar   Panels    Pump Dia.    Outlet Dia.    Pump Height

m3/h    m    Voltage(V)    Power(W)    Voltage(V)    Power(W)    inch    inch    (mm)

3SPS1.0/30-D24/80C    1    30    DC24    80    21-50    150    3    1    420

3SPS1.3/50-D24/140C    1.3    50    DC24    140    21-50    200    3    1    420

3SPS1.8/80-D24/210C    1.8    80    DC24    210    21-50    300    3    1    420

3SPS1.8/100-D24/270C    1.8    100    DC24    300    21-50    500    3    1    420

3SPS1.8/120-D48/500C    1.8    120    DC48    500    42-100    800    3    1    420

3SPS2.3/140-D48/750C    2.3    140    DC48    750    42-100    1200    3    1    420

3SPS2.3/160-D72/1000C    2.3    160    DC72    1000    63-150    1500    3    1    420
