• Product Name: SLRP Stainless steel self priming sanitary centrifugal pump
• Model Number: SLRP-5-18
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

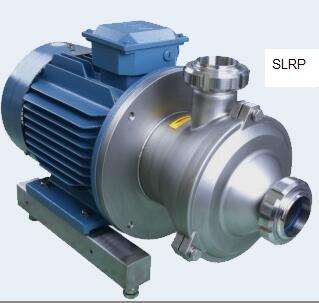

SLRP Stainless steel self priming sanitary centrifugal pump SLRP-5-18 Description

SLRP Self priming centrifugal pump is used to transfer the fluids with gas. It is widely used in the conditions where the liquid level is unstable or even lower than then the pump inlet and it is also used as the return trip in the CIP System. The pump is used in food ,chemical ,wine, pharmaceutical etc industry.

Performance flow rate:10m3/h-60m3/h,

Head:10-47m

Motor power:1.5KW-18.5kw

Pump material: SS316L (Pump body, impeller, pump cover and other parts which contact with liquids are made SS316L)

Seal material: EPDM

Standard: DIN,SMS

Open impeller

Shaft seal: Static ring: SS316L lined with graphite, dynamic ring: SiC

Surface treatment: Flow parts: polishing, other parts: Matte or sandblasting treatment

Max inlet pressure:0.5MPA

Temperature:10 to 140 degree Celsius

Washable mechanical seal

Water pressure: up 0.1MPA

Water volume:0.25-0.5L/Min

Motor: 50HZ or 60HZ

220V-240V Or 380v-420v or 660-690v
