• Product Name: Single suction horizontal multistage boiler feed water pump
• Model Number: DG25-50*5
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

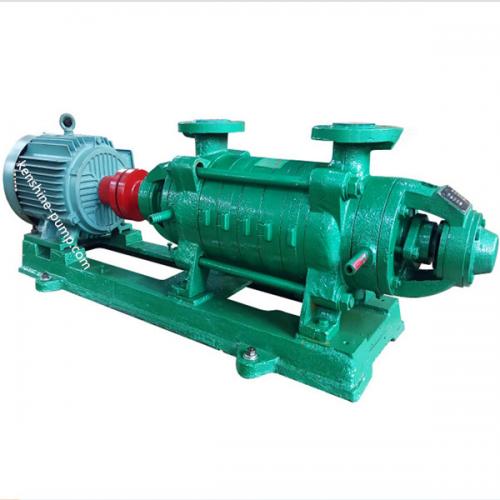

Single suction horizontal multistage boiler feed water pump DG25-50*5 Description

Single suction Horizontal Multistage boiler feed water pump

Boiler feed water with low middle pressure and hot water pump

DG horizontal multistage boiler feeding water pump is a multi-stage centrifugal pump for conveying clean water or other liquid similar to clean water in physical and chemical properties. It is suitable for feed water pump of medium and low-pressure boilers or secondary high-pressure boilers, as well as high pressure water supply and drainage in factories or cities. The temperature of conveying medium is -20DegC to 105°C, and the allowable inlet pressure is less than 0.6mpa.

Features

DG multistage type boiler feed water pump is a common horizontal centrifugal pump used together with boiler. This type of centrifugal pump adopts the high efficiency and energy saving of hydraulic model. It has a wide range of performance, high efficiency, long service life characteristics to replace the old type of GC type boiler feed pump. It adopts the structure of horizontal installation, multi-stage, smooth operation, easy installation, and maintenance.

Structure:

This centrifugal pump is mainly composed of inlet and outlet water section, middle section, guide vane, impeller, shaft, shaft sleeve, bearing, bearing body, sealing parts, etc.

Pump seal: gland packing seal or mechanical seal

Pump material: cast iron, cast steel, stainless steel

Pump is connected with motor by the shaft coupling.
