• Product Name: Single stage horizontal fiberglass centrifugal pump
• Model Number: FS40-32-20
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

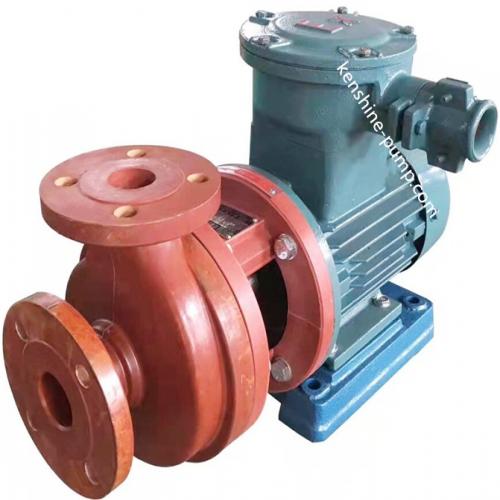

Single stage horizontal fiberglass centrifugal pump FS40-32-20 Description

Horizontal single stage end suction fiberglass centrifugal pump

The flow components are made of polyvinyl butyral and modified phenolic glass fiber materials by high temperature molding. The material has the features of Corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation etc.

WB2 external mounted mechanical seal

The connection between the pump and motor: Close coupling or Shaft coupling

Fiberglass centrifugal pump is mainly used in petrochemical, smelting, dye, printing and dyeing, pesticide, pharmaceutical, rare earth, leather and other industries. It is used for conveying various non-oxidizing acids (hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid, butyric acid). The acids are without solid particles, not easy to crystallize and the temperature is not higher than 100 degrees Celsius.
