• Product Name: Single Air Valve
• Model Number: SAV01
• Brand Name: Wesdom
• Place of Origin: Henan, China
• Minimum Order Quantity: 1
• Supply Capacity: 500/month
• Payment: T/T, L/C , Western Union
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

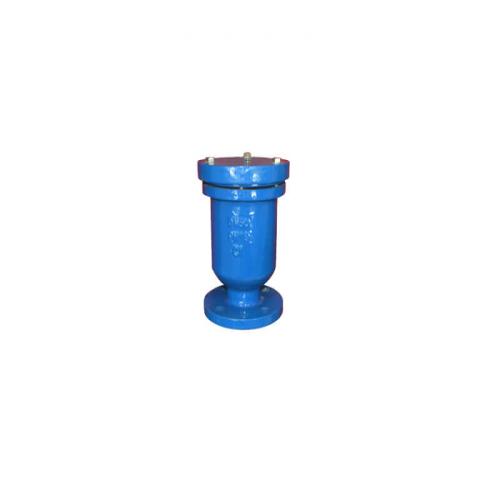

Single Air Valve SAV01 Description

Adoptive standards:

Single ball air valve
Diameter：DN40—DN150
Pressure：PN1.0—1.6MpaMedium：Fresh water, sewage, sea water, weak acid,weak base etc
Temperature：-20℃—120℃
Body material： Grey cast iron, ductile iron
Flange connection:DIN PN10.PN16, ANSI150,BS4504

Features:

In pipeline water hammer negative, air valve opening, so that the tube Daowai air into the pipeline, lest in the pipe produced larger negative pressure, play a protective role; operation of pipeline system, when the pipeline internal pressure or temperature changes and dissolved in the water of the air is released, air valves will be the timely discharge, prevent pipeline in formation of gas and affect the operation of the pipeline system.

Application:

In pumping station pressure tank tops and the water pipe on the installation of air valve for water conveyance pipeline during the initial water filling, regular maintenance of pipeline after water filling the air inside the pipeline to discharge, avoid pressure fluctuations.
