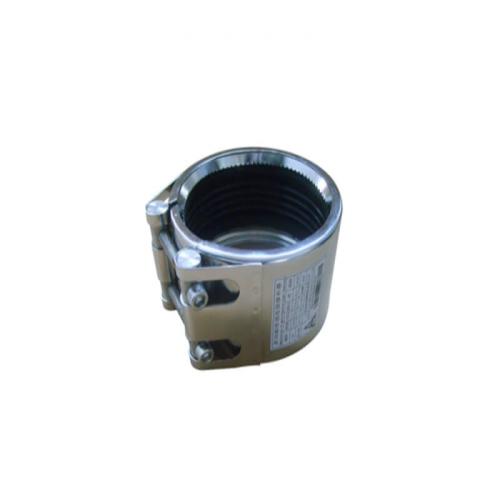

Gear-Ring Type Multi-Function Pipe Coupling GR-S pipe coupling Description

Adoptive standards:



Components/ MaterialM1M2Shell ;



AISI ;304 ;Stainless ;steelAISI ;316L ;Stainless ;steelBridge ;PlateAISI ;304 ;Stainless ;steelAISI ;316L ;Stainless ;steelScrew ;Hole ;Tie ;Rod/Tie ;RodAISI ;304 ;Stainless ;steelAISI ;316L ;Stainless ;steelScrewAISI ;304 ;Stainless ;steelAISI ;316L ;Stainless ;steelGear-RingAISI ;301 ;Stainless ;steelAISI ;301 ;Stainless ;steelEPDM(Ethylene ;Propylene ;Diene ;Monomer)Rubber ;Sealing ;SleeveTemperature:-20℃ ;to ;+120℃ Medium：Available ;for ;various ;kinds ;of ;water,drainage,air,solid ;and ;chemicalsNBR(Nitrile ;Rubber)Rubber ;Sealing ;SleeveTemperature：-20℃ ;to ;+80℃ Medium：Available ;for ;gas,oil,fuel ;and ;other ;hydrocarbon.



MVQ(Silicon ;Rubber)Rubber ;Sealing ;SleeveTemperature ;Range:-75℃ ;to ;+200℃VITON(Fluororubber)Rubber ;Sealing ;SleeveTemperature ;Range:-95℃ ;to ;+350℃

Features:

Allowable angular deflection, provide restraint and strong sealing. It can provide safe, fast and steady connection and very good effect of anti-vibration and noise reduction, as well as function of distance compensation in pipe ends. Easy to be installed and disassemble and reusable.

Application:

Applied to connection of various kinds of metal pipes and composite materials of pipelines.

Shell	M1：AISI 304 Stainless steel；M2:AISI 316L Stainless steel
Bridge Plate	M1：AISI 304 Stainless steel；M2:AISI 316L Stainless steel
Screw Hole Tie Rod/Tie Rod	M1：AISI 304 Stainless steel；M2:AISI 316L Stainless steel
Screw	M1：AISI 304 Stainless steel；M2:AISI 316L Stainless steel
