• Product Name: RV dosing screw pump
• Model Number: RV12.1
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

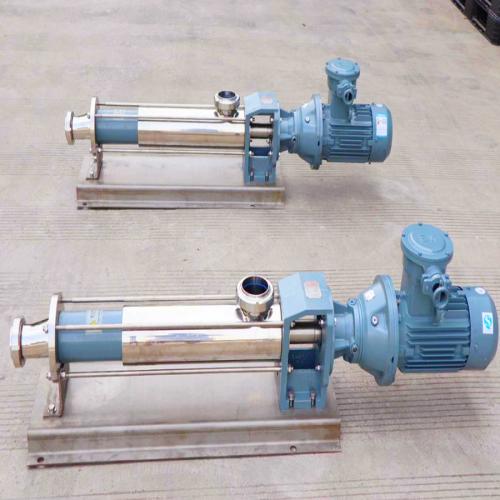

RV dosing screw pump RV12.1 Description

Metering dosing screw pump

RV series minitype dosing screw pump is a kind of single screw pump, which is a positive displacement pump.

When the single-screw rotor rotates around the stator axis in the double-screw stator hole, the closed cavity formed between the rotor and the stator is continuous, uniform, and the volume is constant to transport the medium from the suction end to the output end.

Features

1 - The RV series minitype screw pump is specially designed for small flow liquid transportation, which can transport materials with good fluidity and high viscosity.

It is widely used in liquid medicine metering and dispensing machines, with small axial size, small temperature impact, low torque, strong self-priming capacity, stable flow and low energy consumption.

It is usually used as a metering and dosing pump.

2 - Small flow metering and transportation.

3 - High concentration, high viscosity, high solid content, abrasive slurry with particles, shear medium

4 - The flow is in direct proportion to the rotation speed, with simple structure, low maintenance cost, convenient installation and movement, variable frequency control, and servo motor drive.

Application

It is widely used in food, chemical, pharmaceutical, sewage treatment system quantitative dosing, electronics, batteries, energy, cosmetics and other industries, and is a highly automated professional measurement and coating system.

Such as: lithium battery coating, automobile sealing coating, laboratory slurry, agent mixing ratio, agent and other slurry metering and packaging, solar panel coating conductive paint, electronic industry coating.
