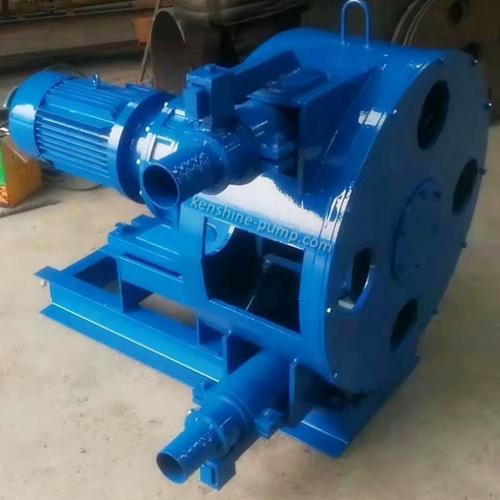

RGB Peristaltic pump hose pump slurry pump RGB75-20-8 Description

1, RGB peristaltic pump hose pump has the strong suction and strong delivery of high solids content, high viscosity, gas-liquid-solid mixture.  Its over - flow material is for the hose which has the advantages of wearing resistance, corrosion resistance, temperature - resistance. The pumped medium only contacts with pump mouth and rubber hose. So chose the different materials of the hose, you can conveniently transport a variety of highly corrosive pulp, fiber pulp. This pump will not have leakage, will not grind the pump body. RGB peristaltic hose pump can reliably transport toxic media and radioactive media. The pump has a suction range of 8 meters, allowing short time dry rotation, but also can transport high viscosity medium gas, solid, liquid three-phase mixed medium.

2. The concentration of corrosive pulp can be sucked up to 75%(measured by weight), and the particle diameter is up to 4 to 12mm;Absorption and delivery of toothpaste - like, high viscosity medium; Strong self-suction, suction height up to 9m(according to water);High discharge pressure, up to 6 to 10kg;Completely closed, no seal, no leakage; Low rotation speed (30-88 RPM) without shear force, sensitive medium can pass through without any damage; Long service life, no wearing parts except one hose, the service life of hose can reach thousands of hours.

RGB Industrial peristaltic pump hose pump high viscosity pump is widely used in the below fields:

Acid, alkali, phosphate paste, titanium dioxide and other inorganic salt materials in the chemical industry;

Drilling mud and crude oil transportation in the petroleum industry;

Transportation of silt mud, tunnel grouting and lime slurry in water treatment;

Mining and metallurgical industries, such as the conveying of filling materials in gold mining and slurry during gold smelting;

Transportation of various pharmaceutical materials and liquids in the pharmaceutical industry;

Oil materials and beverage transportation in the food industry;

Paper industry pulp, sulfur pulp transport

Cement mortar transport in construction industry

Ceramic industry of ceramic glaze slurry transport;

Nuclear waste, electrolytic waste residue, metal slag liquid, paint, paint, adhesive, glue, latex, fire-resistant fiber and other all sealing requirements of high viscosity, particle content of liquid transport.

Model Flow Pressure Motor power Speed Max.Suction height

m3/h kg/cm2 KW r/min m

RGB25-0.5-10 0.5 10 0.55 30～88 9

RGB32-1-10 1 10 0.75

RGB40-2-10 2 10 1.5

RGB40-3-10 3 10 2.2

RGB50-4-10 4 10 2.2

RGB50-6-10 6 10 3

RGB60-10-10 10 10 5.5

RGB60-15-10 15 10 7.5

RGB75-20-8 20 8 7.5

RGB75-30-8 30 8 11

RGB90-50-6 50 6 18.5

RGB100-80-6 80 6 22
