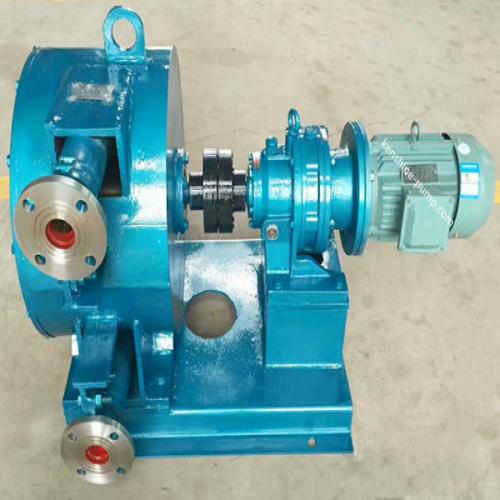

• Product Name: RGB industrial hose peristaltic pump
• Model Number: RGB50-6-10
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

RGB industrial hose peristaltic pump RGB50-6-10 Description

Industrial Hose pump/peristaltic pump

Working principle:

Hose pump is composed of pump shell, rotary body, pump cover, hose, reducer motor and electronic control system. A pair of roller rotate along a special rubber hose and pressure roller and the pump shell crush all the rubber hose, produced by extrusion pressure in the pipe itself flexibility and under the action of lateral guide roller, vacuum suction material, produced by restorable materials under the roller mechanical extrusion from a tube, reciprocating cycle.

Features:

1, RGB hose pump is suitable for strong suction high solid content, high viscosity, gas-liquid solid mixture and performance is particularly superior. Its flow parts is wear - resistant, corrosion - resistant, temperature - resistant. Conveyed medium is contacted with rubber hose. When choose the different materials of the hose, it can be convenient to transport a variety of corrosive pulp, fiber pulp. This pump will not produce leakage, will not grind the pump body. It can reliably transport toxic media and radioactive media. The pump has suction height of 8 meters, allowing short dry rotation, also it can transport high viscosity medium gas, solid, liquid mixed medium.

2, It can suck corrosive pulp concentration up to 75%(by weight), particle diameter up to 4 ~ 12mm;Suction toothpaste etc. Similar medium with high viscosity.

Strong self-suction, suction up to 9m(according to water);High discharge pressure, up to 6 ~ 10kg;Completely sealed, no seal, no leakage, Low rotating speed (30-88 RPM/min), no shear force, sensitive medium can pass nondestructively,  Long service life, no wearing parts except one hose, the service life of the hose can reach thousands of hours.

Application:

1. Chemical industry: acid, alkali, phosphate slurry and inorganic salts such as titanium dioxide

2. Petrochemical industry: drilling mud and original cause transportation

3. Water treatment: transportation of mud and lime slurry

4. Mining and metallurgical industry: filling materials in gold mining, slurry transportation in gold smelting process

5. Pharmaceutical industry: transportation of various pharmaceutical materials and liquids

6. Food industry: oil materials and beverage transportation

7. Paper industry: transportation of pulp and sulfur pulp

8. Construction industry: cement and sand slurry transportation

9. Ceramic industry: ceramic glaze slurry transportation

10. Nuclear waste, electrolytic waste residue, metal slag liquid, paint, paint, adhesive, glue, latex, refractory fiber slurry and all other liquids with high seal requirements, high viscosity, and high particle content.
