• Product Name: QY Self-priming gas-liquid vortex pump
• Model Number: 40QY-6
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

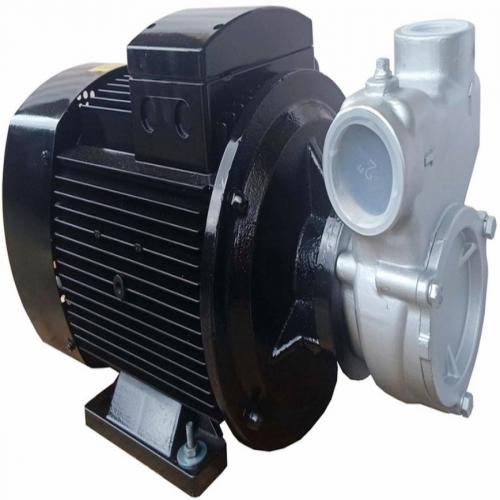

QY Self-priming gas-liquid vortex pump 40QY-6 Description

Self-priming gas-liquid mixing pump

The suction inlet of the gas-liquid mixture pump can use the negative pressure action to inhale the gas, without the use of air compressor and atmospheric ejector.

The high speed rotating impeller of the pump mixes the liquid and the gas, without stirrer and mixer.

Due to the pressurized mixing in the pump, the gas and liquid are fully dissolved, and the dissolution efficiency can reach 80-100%.

Highly soluble solutions can be produced without large pressurized dissolved gas tanks or expensive reaction towers.

The gas-liquid ratio is about 1: 9 (inspiratory capacity is 8-10%), and the inspiratory capacity can be increased by using in series

A gas-liquid mixing pump can inhale, mix, dissolve and directly deliver the highly dissolved liquid to the point of use.

The use of gas-liquid mixing pump can improve the efficiency of dissolved gas-liquid production, simplify the production device, save the site, save the operation cost and maintenance cost

Application

The pump is mainly used for gas-liquid mixing and stirring, liquid transport, circulation and pressurization, ozone water preparation, oxygen-rich water preparation, as well as water, pure water, food spray treatment.

Thin, clean, low viscosity or liquid containing fine impurities Liquid temperature: -15 to 120 degree Celsius

gas-liquid ratio is about 1: 9 (inspiratory capacity is 8-10%)

Self-priming height is about 9m (NPSH)

The suction inlet is horizontal and the exhaust outlet is vertical
