• Product Name: QBY aluminum alloy pneumatic diaphragm pump
• Model Number: QBY-50
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

QBY aluminum alloy pneumatic diaphragm pump QBY-50 Description

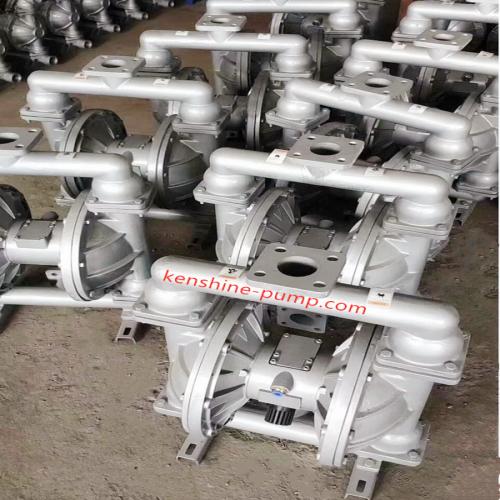

QBY aluminum alloy pneumatic diaphragm pump
Pneumatic diaphragm pump is a new type of transport machinery. The pump is driven by compressed air as the power source. QBY pneumatic diaphragm pump is used to convey various corrosive liquid, liquid with particles, high viscosity, volatile, flammable, highly toxic liquid etc.
Main application:
1. Pump peanut butter, pickles, mashed potatoes, small red sausage, apple jelly, chocolate, etc.
2, pump paint, gum, paint.
3, adhesive and glue, all kinds of pump suction.
4, various tiles, porcelain, brick and ceramic glaze paste.
5. After the well is drilled, the sediment and grouting are pumped.
6, pump suction of various emulsions and fillers.
Pump all kinds of sewage.
8. Use the pump as tanker and the barge to clear the warehouse and absorb the sewage in the warehouse.
9, hops and baking powder pulp, syrup, sugar density.
10, pump suction mine, tunnel, tunnel, ore dressing, slag in the water.Pumping cement grout and mortar.
11. Various rubber pulp.
12. Various abrasives, corrosive agents, oil and mud, cleaning oil and general containers.
13. Various highly toxic, flammable and volatile liquids.
14. Various strong acids, bases and corrosive liquids.
15. Various high-temperature liquids can withstand 150℃ at most.
16. As a pre-stage pressure feeding device for various solid-liquid separation equipment.
Performance
Flow: 0-30m3/h;
Head: 0-50m;
Caliber: 10-100mm;
Temperature: -15-+120℃;
Pressure: 0.1-0.7mpa;
Suction height: 5-7m.
