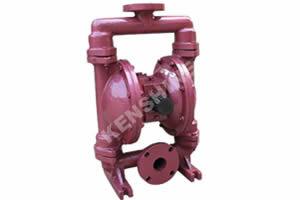

• Product Name: QBY Air operated double diaphragm pump
• Model Number: QBY-50
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

QBY Air operated double diaphragm pump QBY-50 Description

QBY Series pneumatic diaphragm pump
QBY Series pneumatic diaphragm pump is the new transport machine driven by compressed air for various corrosive liquids and liquids with solid grain and high viscosity and volatile and flammable and toxin liquids etc.
8 Specification of inlet and outlet diameter: φ10mm（3/8''）、φ15mm（1/2''）、φ25mm（1''）、φ40mm（11/2''）、φ50mm（2''）、φ65mm（21/2''）、φ80mm（3''）、φ100mm（4''）.
4 materials of pump body: Aluminum alloy, cast iron, stainless steel, engineering plastic.
Diaphragm materials: NBR, Neoprene, Fluorine plastic (Viton), Teflon(FEP/F46)/PTFE for different medium
Application fields: Petroleum, Chemical industry, electron, ceramic and weave etc

1. Suck peanut,pickles,tomato slurry,red sausage,chocolate,hops and syrup etc.
2. Suck paint,pigment,glue and adhesive etc.
3. Suck various glazed slurries of tile,porcelain, brick and chinaware etc.
4. Suck various milk and wad.
5. Suck various sewage.cement slurry and mortar etc
6. Suck variousgrinding materials,corrosive agent and clean the oil dirt etc.
7. Suck various toxin and flammable or volatility liquid etc.
8. Suck various strong acid,alkali and corrosive liquids etc.
9. Be used as the front-step transmission device of the solid and liquid separation equipment.
Highest temperature of various liquids is150℃.
