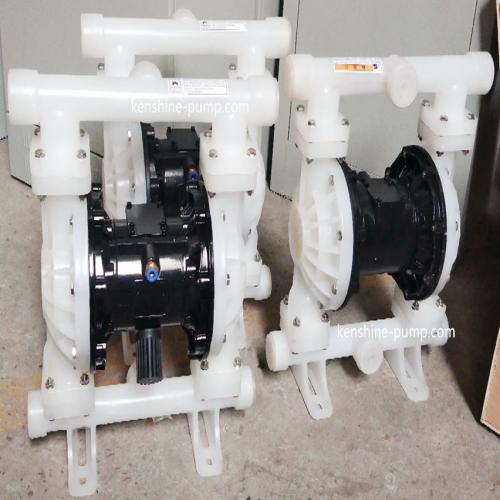

• Product Name: QBK plastic RPP pneumatic diaphragm pump
• Model Number: QBK-25PPFF
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

QBK plastic RPP pneumatic diaphragm pump QBK-25PPFF Description

QBK plastic PP anticorrosion pneumatic diaphragm pump
QBK air operated double diaphragm pump can pump the fluids and liquids with solid particle or fiber impurity etc. or high viscosity fluids such as water, oil, slurry, mud wastewater or corrosive chemical liquids.   QBK plastic PP pneumatic diaphragm pump is made of RPP material with FEP/F46 diaphragm and valve ball etc. and the plastic membrane pump is used to transfer the corrosive chemical liquids and has the good corrosion resistance.
The pump is the ideal pumps to replace self-priming pump, submersible pump, shield pump, mud pump and impurities pump and chemical pumps etc.
1.Suction height is up 5 meters. Outlet pressure ≥6bar.
2.Impurity or particles diameter into the liquids can up to 10mm. It is good to transport the mud, wastewater or corrosive liquids with impurities.
3, easy to use, reliable work, simply open and close the gas valve.
4, No leakage.
5. It can transport relatively viscous liquid (viscosity is less than 10,000 centipores);
6. No electricity. Safe and reliable use in inflammable and explosive places. Air operated membrane pump.
7. It can be immersed in the medium for work.
8. The head and flow of corrosion-resistant diaphragm pump can be stepless adjusted through the opening degree of air valve (the air pressure is adjusted between 1 and 7bar) :
9, pneumatic diaphragm pump without oil lubrication can idle.
