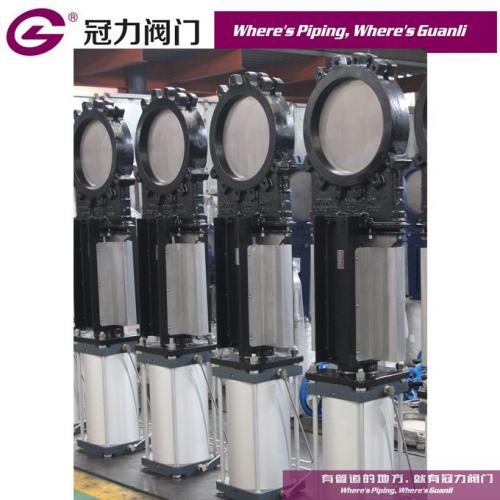

Pneumatic type knife gate valve
- Product Name: Pneumatic type knife gate valve
- Model Number: GKU01
- Brand Name: Guanli Valve
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1Set
- Supply Capacity: 10000 Sets/month
- Payment: Visa, T/T, L/C, Western Union
- MemberShip: Free Member
- Inquiry Now
Pneumatic type knife gate valve GKU01 Description
The GKU01 knife gate is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Pulp and Paper
Power plants
Wastewater treatment plants
Chemical plants
Food and Beverage
Bulk handling
Mining
etc.
Sizes:DN 50 to DN 1800,accept customized design.
Working pressure:
DN 50 to DN 250: 10 kg/cm2
DN 300 to DN 400: 6 kg/cm2
DN 450: 5 kg/cm2
DN 500 to DN 600: 4 kg/cm2
DN 700 to DN 1200: 2 kg/cm2
Accept full pressure for special working pressure
Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150),JIS 10K,AS2129,AS4087
Note: other flange connections (on request):
| Material | Ductile iron/CF8M/CF8/SS2205/SS2507 |
|---|---|
| Color | Black,green,blue,red,etc |
| Standard | EN1092,AS2129,CLASS 150 |
| Knife | SS304/SS316/2205 |
| Operation | Pneumatic actuator in double acting |
